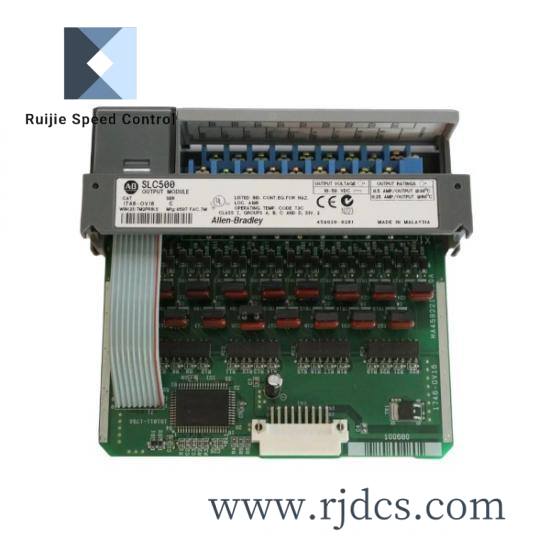

Allen Bradley 1746-OV16 Discrete Output Module
The Allen-Bradley 1746-OV16 is a high-performance discrete output module designed for use in industrial control systems. This module offers reliable digital outputs, making it ideal for applications requiring precise control over machinery and processes.
Product Model:1746-OV16
Type:Discrete Output Module
Series:SLC 500
Input Voltage:24 VDC
Input Voltage Range:10-50 VDC
Backplane Current Consumption:0.270 A
Voltage Range:10-50 VDC
Outputs:16; Sink
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 mA
Load:1 mA
Current Rating:{“Backplane”:”0.28 A”,”Continuous Current Per Output”:”0.25 A at 60°C”,”Continuous Current Per Module”:”4 A at 60°C”}
Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”,”Processor”:”SLC 500″}
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0-60°C
Environmental Conditions:5-95%
The Allen Bradley 1746-OV16 Discrete Output Module is designed for high-performance applications in industrial control systems. With its robust design, it ensures reliable operation even under demanding conditions. The module features 16 sink outputs capable of handling input voltages between 10 and 50 VDC, making it versatile for different applications. Its low backplane current consumption of 0.270 A ensures energy efficiency. The product is ideal for use in manufacturing facilities, production lines, and any environment where precise control signals are required. Installation is straightforward, thanks to its easy-to-use mounting system and compatibility with Allen Bradley’s SLC 500 series controllers. For optimal performance, it is recommended to operate within the specified voltage range and environmental conditions.
