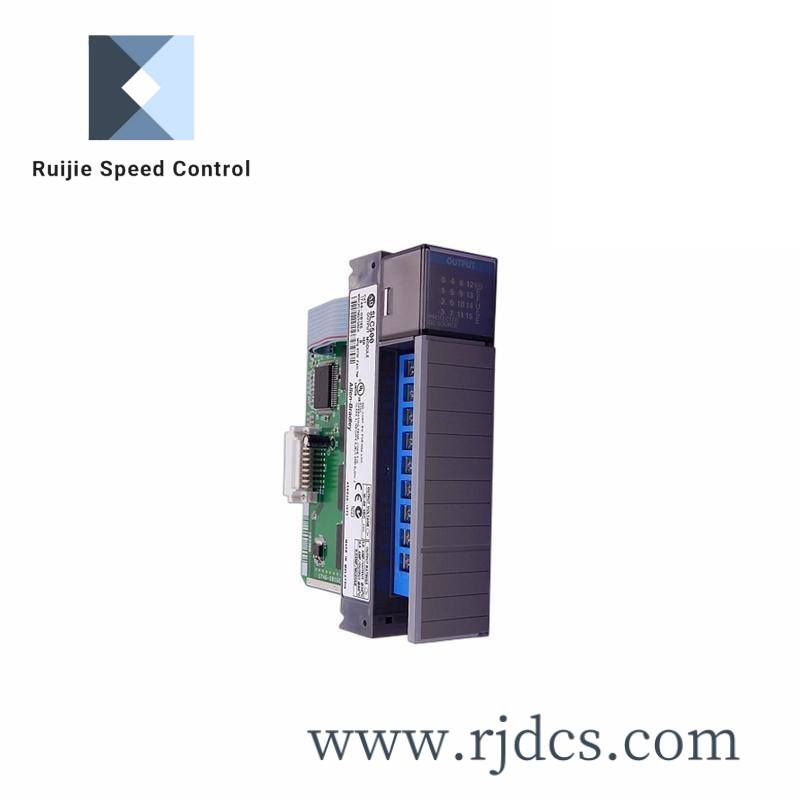

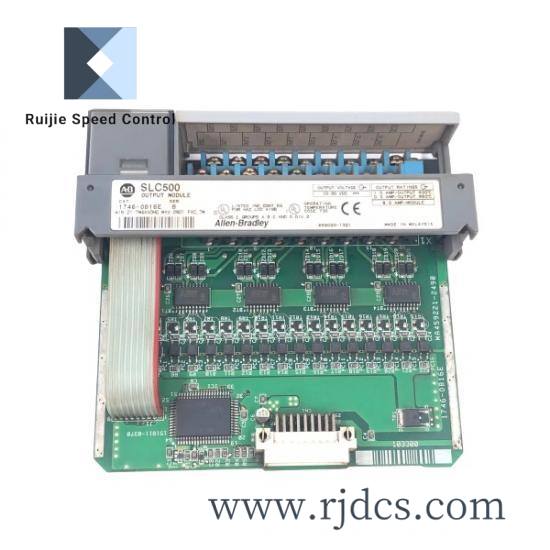

A-B 1746-OB16E Digital DC Output Module
The Allen-Bradley 1746-OB16E Digital DC Output Module provides reliable digital output functionality, ideal for industrial control systems requiring precise control and monitoring. It is designed for applications that demand high performance and robust reliability.
Model Type:SLC500
Model Number:1746-OB16E
Manufacturer:Allen Bradley
Number Of Channels:16
Input Voltage:24 VDC
Output Voltage:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating – Backplane:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Communication Circuits Isolation:500 VDC
Backplane Isolation:1500 VAC
Processor Compatibility:SLC 500
Mounting Type:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% relative humidity
The A-B 1746-OB16E is a highly reliable and robust Digital DC Output Module designed by Allen Bradley for industrial control applications. This module supports up to 16 channels, offering precise control over outputs which are essential for automating processes in manufacturing facilities.
With its ability to handle input voltages ranging from 10 to 50 VDC, this module ensures compatibility with a wide range of devices and systems. Its low on-state voltage drop and minimal off-state leakage contribute to energy efficiency and extended operational life.
Featuring an open type enclosure, the module is mounted on a chassis for easy integration into existing setups. Its operating temperature range of 0 to 60°C makes it suitable for use in a variety of environments, ensuring stable performance under different conditions.
Moreover, the module is built to withstand environmental conditions such as humidity levels between 5% and 95%, providing a dependable solution for harsh industrial settings.
