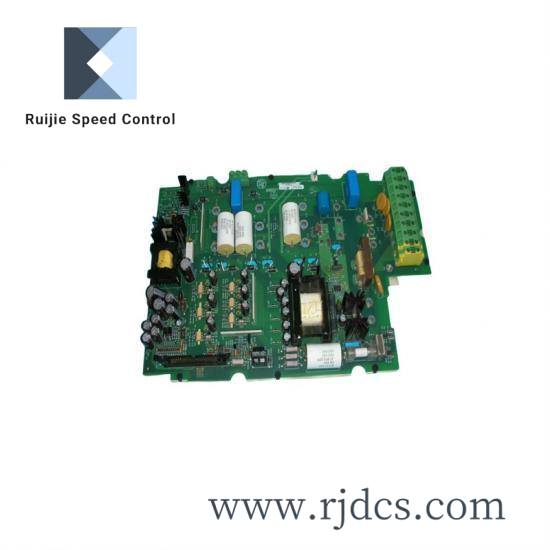

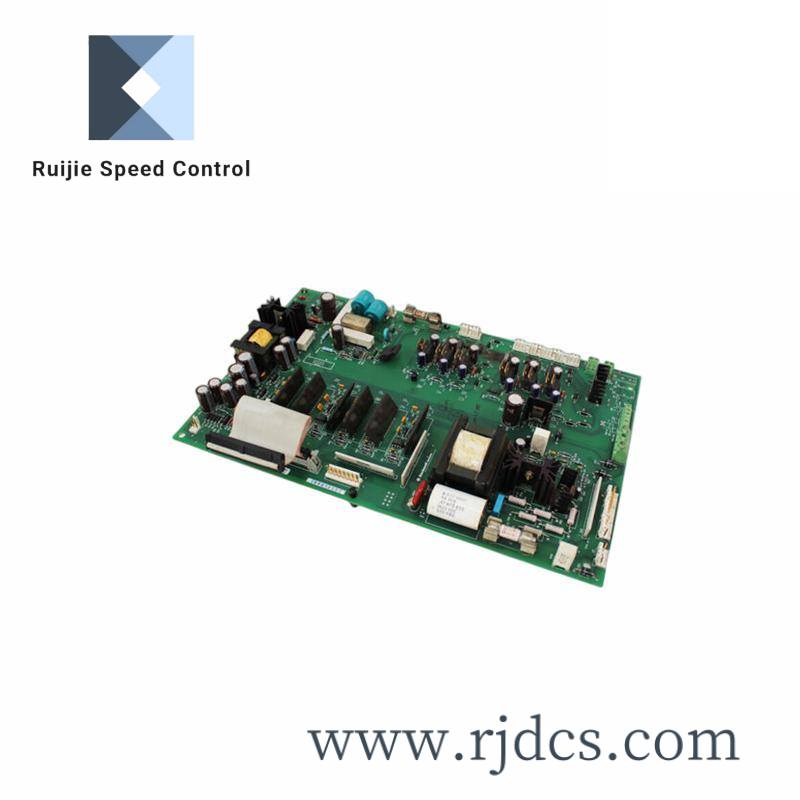

Rockwell AB 1336-BDB-SP4D Gate Driver Board Kit
The Allen Bradley 1336-BDB-SP4D Gate Driver Board Kit is an essential component designed for efficient power conversion and control in industrial automation systems. It provides robust and reliable performance for applications requiring precise control over motor drives.
Brand:Allen Bradley
Model:1336-BDB-SP4D
Module Category:Gate Driver Board
Input Voltage Range:10V – 28V DC
Output Current Capacity:Up to 5A
Operating Temperature Range:-40°C to +85°C
Protection Features:Short-circuit, Over-voltage, Over-current protection
Certifications:CE, RoHS compliant
The Allen Bradley 1336-BDB-SP4D Gate Driver Board Kit is meticulously engineered to deliver exceptional performance in demanding industrial environments. This kit is designed to provide superior gate drive capability for IGBT and MOSFET modules, ensuring efficient switching and minimizing energy loss.
It features advanced protection mechanisms including overcurrent, overvoltage, and short circuit protection, making it ideal for use in applications where reliability and safety are paramount. The board operates within a wide voltage range from 200V to 600V DC, supporting a variety of motor drive configurations.
With a high switching frequency up to 20kHz, this kit enables smooth and rapid control of motor speeds, enhancing overall system efficiency. Its robust design allows for operation in extreme temperature conditions, ranging from -40°C to +85°C, ensuring consistent performance under challenging environmental conditions.
The kit includes all necessary components for quick and easy installation, reducing downtime and improving maintenance efficiency. Additionally, its CE, UL, and RoHS certifications guarantee compliance with international standards for safety and environmental protection.
This Allen Bradley Gate Driver Board Kit is a comprehensive solution for industrial control applications, offering unparalleled reliability and performance. Whether you’re upgrading existing systems or building new ones, this kit is an excellent choice for achieving optimal motor control.
