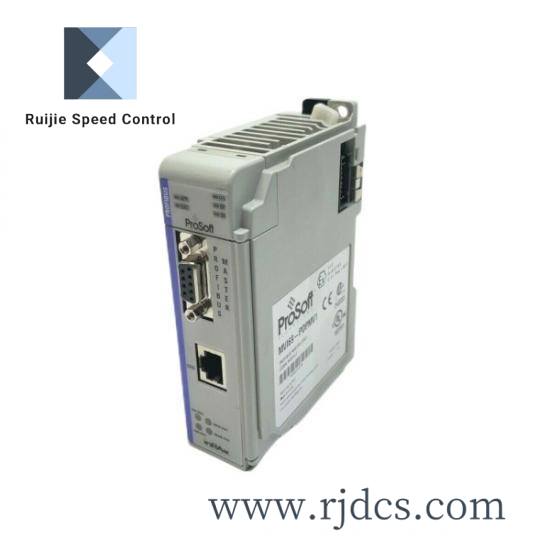

PROSOFT MVI69-PDPMV1 PROFIBUS DPV1 Master Module, Extended Product Type
The MVI69-PDPMV1 is a high-precision PROFIBUS DPV1 Master Module designed for industrial automation and control systems. It facilitates seamless communication between the processor and the module, making it ideal for applications requiring efficient data transfer.
Module Type:PROFIBUS DPV1 Master
Model Number:MVI69-PDPMV1
Compatibility:1769 Backplane Compatible
Communication Speed:Up to 12 Mbps
Supported Protocols:PROFIBUS DPV1
Power Requirements:24 VDC
Operating Temperature:-40°C to +85°C
Storage Temperature:-40°C to +85°C
Certifications:CE, UL
The MVI69-PDPMV1 is a single-slot PROFIBUS DPV1 Master Module that integrates seamlessly with the 1769 backplane. This compatibility ensures smooth operation within a wide range of industrial control systems.
Utilizing Ladder Logic, the module enables efficient data transfer between the module memory and the processor controller tags. A sample ladder file with AOI is included for ease of configuration.
Configuration data is easily obtained through the ProSoft Configuration Builder Software, which allows for precise definition of the PROFIBUS network.
Built with robust materials and precision engineering, the MVI69-PDPMV1 ensures reliability and durability under industrial conditions.
This module supports floating-point data movement, enhancing its flexibility in supporting various data types and ensuring high precision in industrial control environments.
