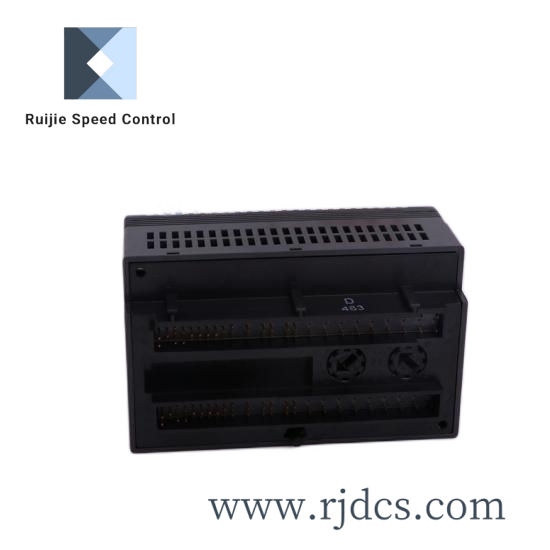

MULTILIN 565-5-5-O-A Feeder Management Relay
The Multilin 565-5-5-O-A is a high-performance digital feeder management relay designed for comprehensive protection and control of power systems. It provides advanced ground current protection and timed overcurrent phase protection, ensuring reliable operation in industrial environments.
Manufacturer:General Electric Multilin (GE)
Model Number:565-5-5-O-A
Maximum Power Supply:50 Watts
Measurements Bandwidth:0-120 Hz
Phase Overcurrent Protection:Timed Overcurrent Pickup Range 25-250% of CT in Steps of 1%
Undervoltage Alarm and Trip Pickup:101 to 125% in steps of 1%
Ground Current Input:Momentary 20 x CT Input Rating for 3 Seconds
Ground Overcurrent Protection:Time Dial 32 Selections
Weight:Approximately 20 lbs
Burn In Temperature:60°C for 24 Hours
Voltage Inputs VT Burden:Less than 0.2 VA at Rated Input Voltage Supply 20-60 VDC
Ground Current Input CT Primary:10-5000 Amps in 5 Amp Steps
Max Voltage for Analog Outputs:30 VDC or p-pAC
The Multilin 565-5-5-O-A is a cutting-edge digital feeder management relay designed for critical power system applications.
It features robust phase overcurrent protection and timed overcurrent pickup, providing a reliable solution for safeguarding industrial electrical networks.
Its design includes advanced ground current protection and time dial selections for customized overcurrent handling.
The relay supports precise voltage inputs and has a minimal VT burden, ensuring efficient operation under varying load conditions.
With its extended options, this model offers enhanced functionality through an additional optional card, making it a versatile choice for modern industrial settings.
