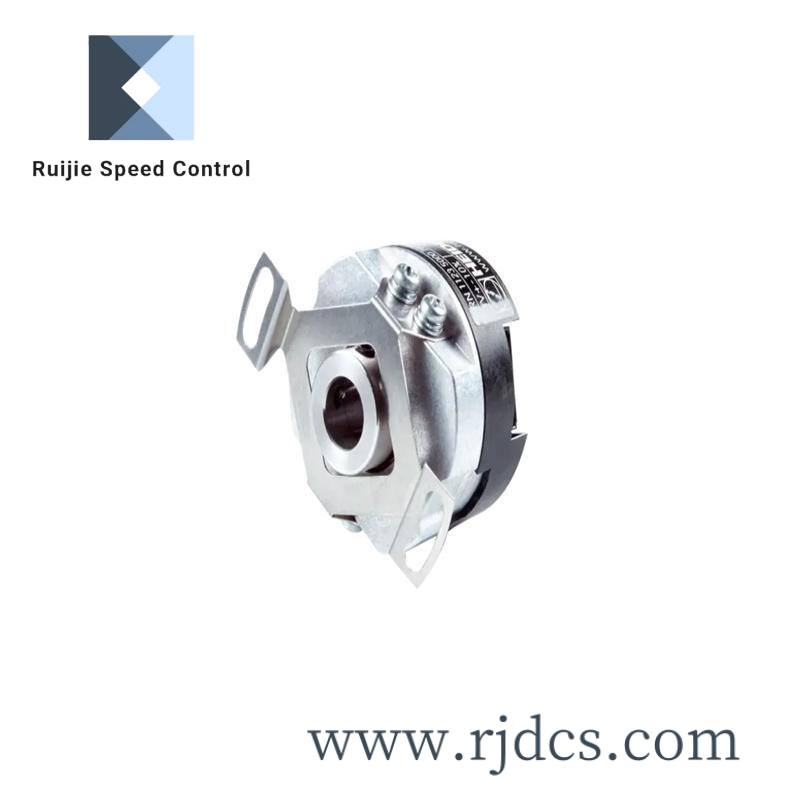

HEIDENHAIN 358699-01 RON 200 Encoder System with 2048 Incremental Pulses and 2m Cable
The HEIDENHAIN RON 155.0000-3600 is a high-resolution rotary encoder designed for precise measurement and control applications in industrial automation systems. It offers reliable performance in harsh environments and is ideal for use in machinery, manufacturing processes, and robotics.
Part Number:358699-01
Manufacturer:HEIDENHAIN
Resolution:2048 pulses per revolution
Interface:Incremental
Output Signal:Sinusoidal signals up to 1 MHz
Supply Voltage:5 V DC ±10%
Operating Temperature Range:-20°C to +85°C
Protection Class:IP67
Weight:Approximately 150g
The HEIDENHAIN 358699-01 linear encoder module is a highly accurate solution for precision measurement applications in industrial settings. This module utilizes EnDat 2.2 interface technology, which provides reliable communication between the encoder and the control system. Its incremental signal type allows for continuous position monitoring, making it ideal for use in automation and robotics.
The module is built with robust materials to withstand harsh operating conditions, featuring an IP67 protection class that ensures resistance against dust and water ingress. The compact design makes it easy to integrate into existing machinery without requiring significant modifications.
Key Design Highlights:
– High resolution and accuracy for precise measurements
– Compatible with EnDat 2.2 interface for seamless integration
– Robust construction with IP67 protection for durability
– Incremental signal type for continuous position monitoring
– Compact size for easy installation in tight spaces
Installation of the HEIDENHAIN 358699-01 is straightforward, thanks to its intuitive design and compatibility with standard mounting configurations. This module is a valuable addition to any industrial control system, providing accurate and reliable position feedback.
