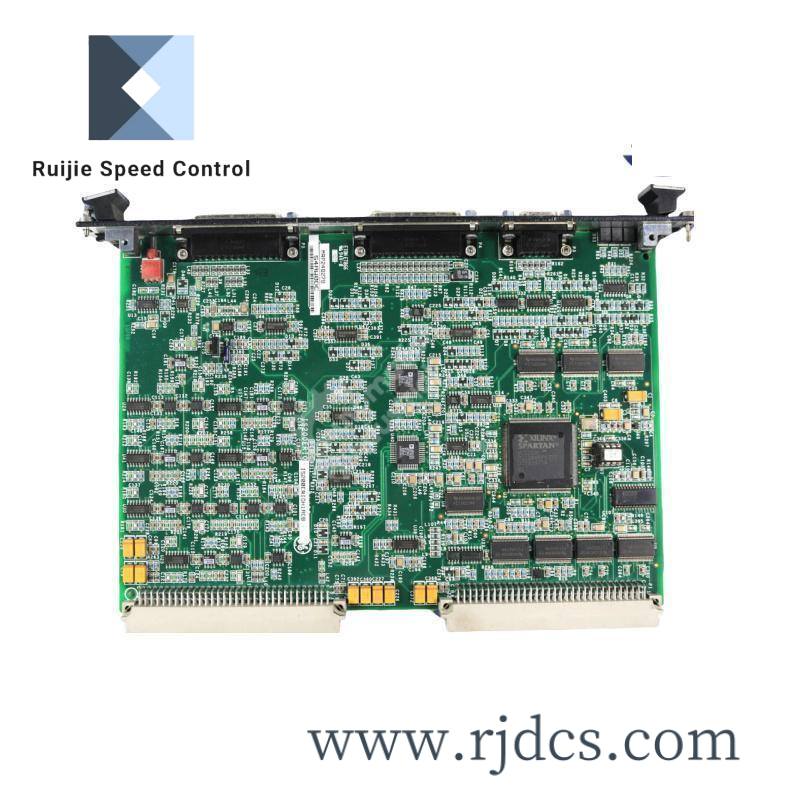

GE IS200EGPAG1BCA – Communication Module for EX2100 Control System
The GE IS200EGPAG1BCA is a high-performance gate pulse amplifier designed for the EX2100 excitation control series. It facilitates precise control over thyristors, enhancing efficiency and reliability in turbine operations.
Board Type:Gate Pulse Amplifier Board
Model Number:IS200EGPAG1BCA
Configurable Hardware:Yes, includes on-board jumpers
Weight:1lb 9oz
Functionality:Controls power bridge and integrates conduction feedback mechanisms
Manufacturer:General Electric, GE Industrial Systems
The GE IS200EGPAG1BCA is a high-performance gate pulse amplifier board designed by General Electric specifically for excitation control systems.
This board plays a crucial role in controlling the power bridge within these systems, amplifying gate pulse signals to drive SCRs (Silicon Controlled Rectifiers).
Its design incorporates five on-board jumpers for configurable hardware settings, enhancing its adaptability to various applications.
The board also features on-board green and red LED indicators, providing clear visual feedback on system status.
With precise control over SCRs and the ability to monitor conduction feedback, airflow, and temperature, this amplifier ensures reliable and efficient operation in demanding industrial environments.
Whether used in power generation or other high-stakes industries, the GE IS200EGPAG1BCA is a robust and dependable solution for excitation control systems.
