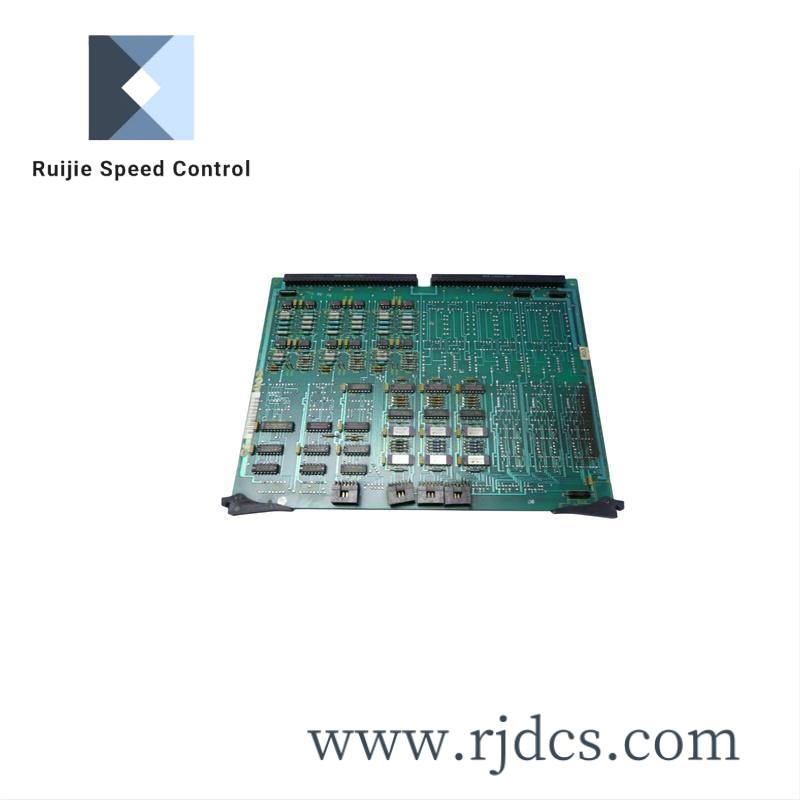

GE DS3800HRDB1 Signal Transmission Module, General Electric Control Board for Turbine Systems
The GE DS3800HRDB1 is an essential component in the General Electric Mark IV Speedtronic line, designed for signal transmission and control in industrial automation environments. It ensures seamless communication between different parts of a turbine system.
Manufacturer:General Electric
Model:DS3800HRDB1
Category:Circuit Board
Compatibility:Mark IV Speedtronic System
Ports:One long connector port running along the edge
Diodes:Eight yellow diodes, sixteen orange diodes, and six black diodes
Resistors:Over two hundred tiny resistors and two larger resistors
Capacitors:Six yellow capacitors
ICs:Twenty-eight integrated circuits
Terminal Types:Substantial female terminal and two male terminals with plastic boxes
The DS3800HRDB1 is a specialized circuit board tailored for high-performance industrial applications.
Featuring over two hundred tiny resistors and two larger resistors, this board supports reliable data transmission in critical control systems.
The design includes a long connector port with numbered pins from 10 to 80, facilitating precise connections.
The inclusion of twenty-eight integrated circuits enhances the board’s processing capabilities, making it ideal for demanding environments where accuracy and reliability are paramount.
Its robust construction and compatibility with GE’s Mark IV Speedtronic series make it an indispensable component for upgrading or maintaining industrial control systems.
