GE DS3800HPIB Phase Module – Unidirectional Non-Driver Pulse

GE DS3800HPIB Phase Module – Unidirectional Non-Driver Pulse

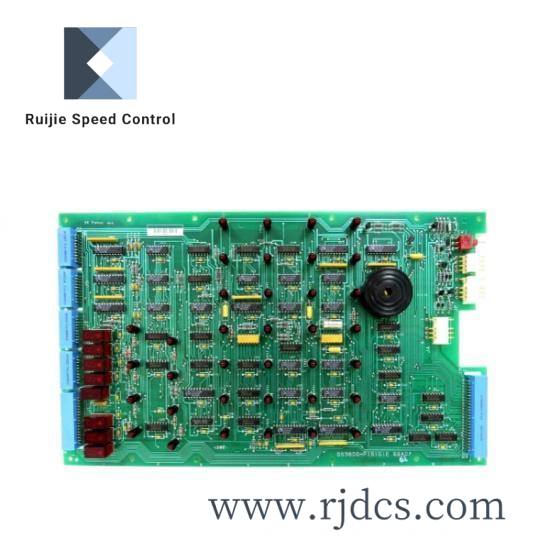

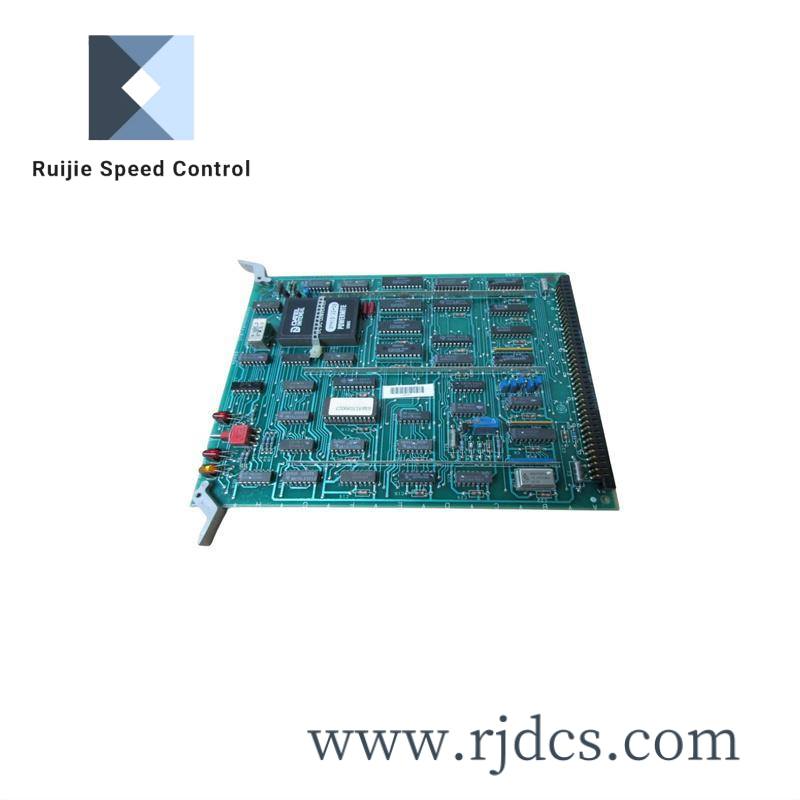

    The DS3800HPIB is a Panel Interface Board designed for General Electric’s Mark IV turbine control systems. It facilitates efficient communication between various components, ensuring reliable and accurate control of industrial turbines.

Model Number:DS3800HPIB

Manufacturer:General Electric

Module Type:Phase Module Top Bridge

Compatibility:Designed for GE Speedtronic Mark IV turbine control systems

Diodes:Approximately fifty small sky blue diodes and six silver diodes

Connection Terminals:Eight connection terminals of varying sizes

EPROM & EEPROMS:Around forty-five EPROM and EEPROMs for storing programming data

LEDs:Over thirty-five red LEDs on the face of the board

Switch:Small toggle switch included

Mounting Points:Twelve mounting points for secure installation

Certifications:CE, RoHS compliant

    The DS3800HPIB phase module is crafted with precision to deliver top-tier performance in industrial settings. With eight connection terminals varying in size, it ensures flexible connectivity options for diverse applications.

    The board is equipped with approximately fifty small sky blue diodes and around half a dozen silver diodes, providing clear visual indicators of operational status, which enhances troubleshooting capabilities.

    It houses a mix of around forty-five EPROM and EEPROMS, which store essential programming for executing its functions. This robust storage solution guarantees reliable operation under various conditions.

    Securing the DS3800HPIB in place is made easy with twelve screw mount positions, ensuring stability and longevity in any installation environment.

    For seamless integration, the DS3800HPIB comes with nine connection points, each compatible with a female harness, making it versatile for multiple wiring harnesses. This feature simplifies setup and reduces downtime.
