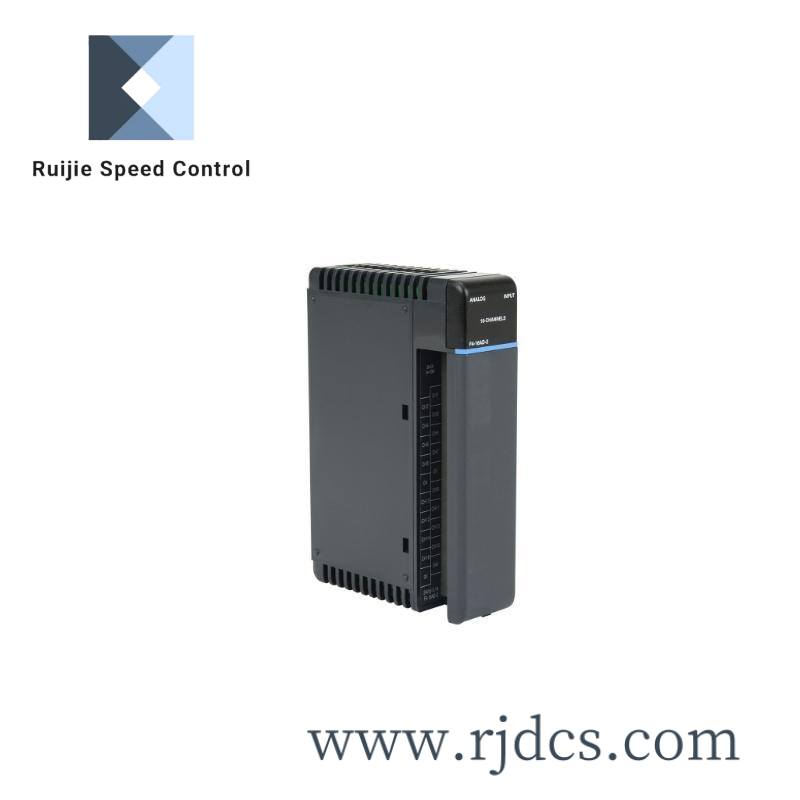

Automation Direct F4-16AD-2 16-Channel Analog Voltage Input Module

Automation Direct F4-16AD-2 16-Channel Analog Voltage Input Module

    The Facts F4-16AD-2 is an advanced analog voltage input module designed for seamless integration into DirectLogic 405 series logic controllers and external I/O devices, enabling precise signal conversion and management for industrial automation applications.

Module Type:Analog Voltage Input

Channels:16

Resolution:12-bit

Input Range:-10V to +10V

Output Type:Digital

Power Supply:DC 5V

Current Consumption:≤80mA

Operating Temperature:-10°C to +55°C

Storage Temperature:-20°C to +70°C

    The F4-16AD-2 module is meticulously engineered for demanding industrial environments. Its sixteen channels enable seamless integration with various peripheral devices, facilitating real-time data acquisition and processing. Each channel supports a wide input range of 0-10V DC, ensuring compatibility with a broad spectrum of sensors and transmitters. With a high-resolution 12-bit converter, the module accurately translates analog voltage signals into digital format, offering superior precision and reliability.

    Designed for longevity and robust operation, the module operates efficiently within a specified power range, requiring minimal power consumption while delivering consistent performance. It includes two selectable output ranges (0-5V DC and 0-10V DC), allowing for flexible integration with different types of equipment and control systems. Additionally, the F4-16AD-2 supports voltage sourcing with a 10 mA maximum, making it ideal for applications requiring precise control over analog outputs.

    Installation is straightforward, with all channels terminating into a single common, simplifying wiring configurations and reducing the risk of connection errors. By adhering to the recommended installation guidelines, users can ensure optimal functionality and extend the lifespan of their investment.
