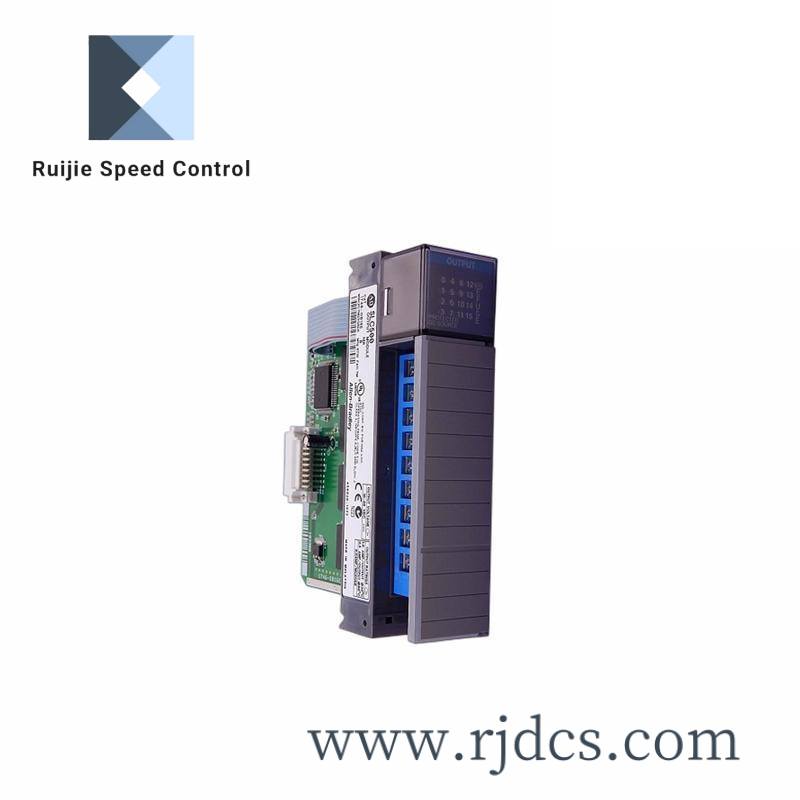

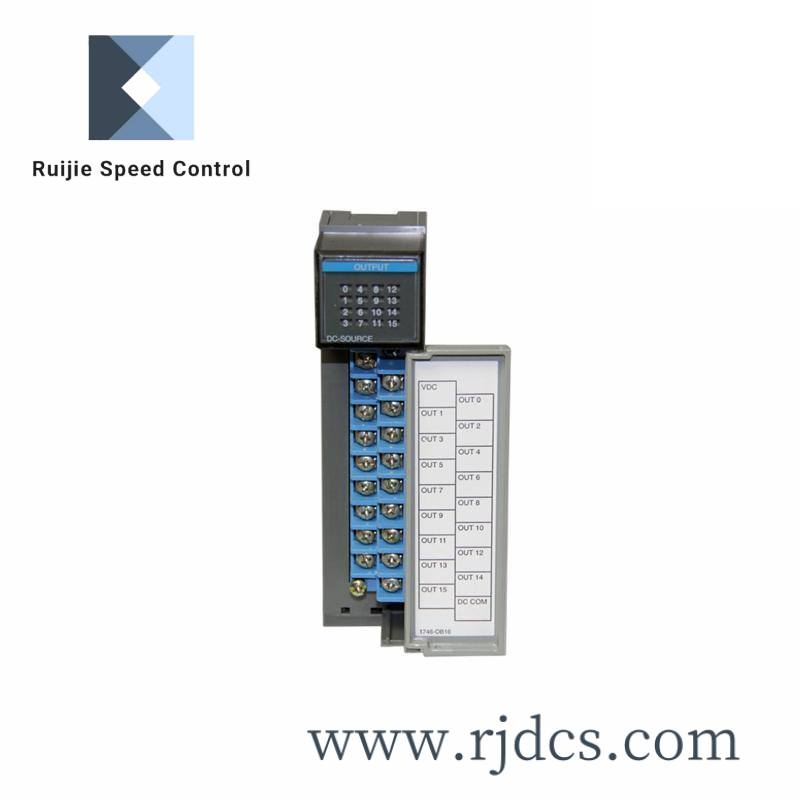

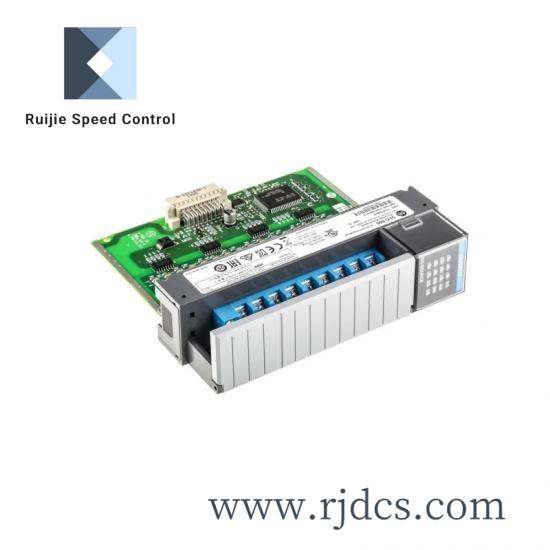

Allen-Bradley 1746-OB16 Digital Output Module

Allen-Bradley 1746-OB16 Digital Output Module

    The AB 1746-OB16 Digital DC Output Module is designed for industrial automation applications. It provides reliable digital outputs for control systems, ensuring efficient and accurate operation in various industrial environments.

Manufacturer:Allen Bradley

Model Number:1746-OB16

Module Type:Digital DC Output Module

Number of Channels:16

Input Voltage:24 VDC

Output Voltage Range:10 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Capacity:1 MA

Backplane Current Rating:0.28 A

Continuous Current Per Output:0.25 A at 60°C

Continuous Current Per Module:4 A at 60°C

Isolation Voltage:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”}

Processor Compatibility:SLC 500

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95% Relative Humidity

    The A-B 1746-OB16 Digital DC Output Module is engineered to enhance the performance of industrial control systems by providing robust and reliable digital outputs. With its sixteen channels, this module ensures seamless integration into a wide range of automation applications. The input voltage of 24 VDC guarantees compatibility with most industrial devices, while the adjustable output voltage range from 10 to 50 VDC offers flexibility in system design. Its low on-state voltage drop of 1.2 V minimizes energy loss, and the negligible off-state output leakage ensures minimal interference. Built to withstand demanding environments, this module features a temperature rating from 0 to 60 DEG C and can operate under environmental conditions ranging from 5% to 95% humidity. Designed with safety in mind, the module is isolated with communication circuits rated at 500 VDC and backplane isolation at 1500 VAC, ensuring reliable operation and longevity in various industrial settings.
