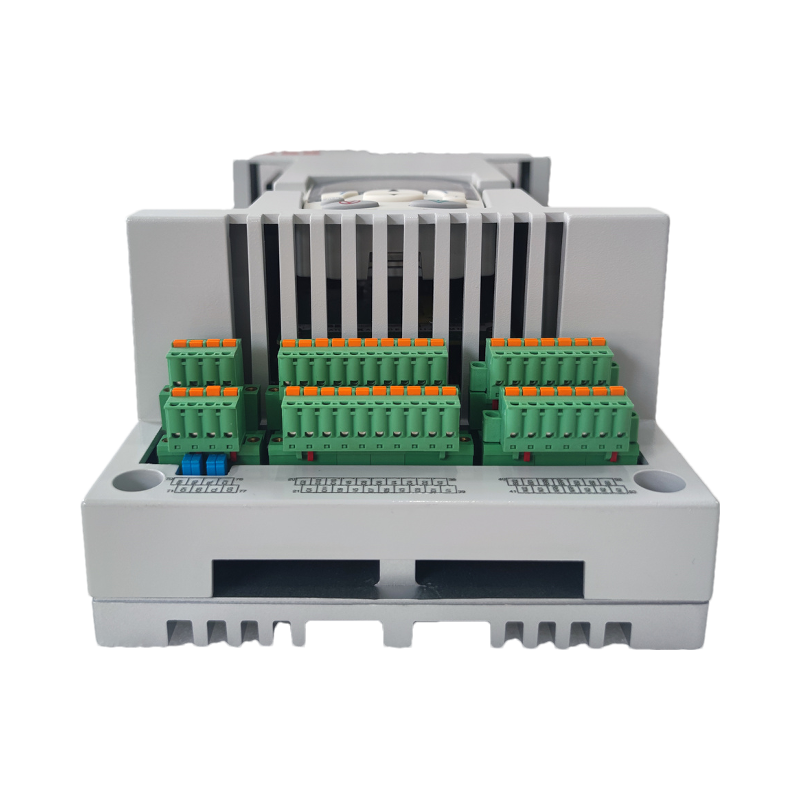

ABB UNITROL1020

• Storage Temperature Range: Can be stored in temperatures from -40°C to +85°C.
• Relative Humidity: Operates in humidity levels from 5% to 95% (non-condensing).
• Dimensions: Compact design, allowing for easy installation in control cabinets.
• Weight: Lightweight for convenient handling and mounting.

2. Functional Features

• Dual-Channel Support: Enables advanced load sharing in parallel-running machines, enhancing system flexibility.
• PID Controllers: Features adjustable PID controllers for automatic voltage regulation, power factor control, and reactive power management.
• Rotary Diode Monitoring: Provides monitoring of rotary diodes to ensure system reliability.
• Automatic Synchronization: Supports automatic synchronization for seamless integration into power systems.
• Enhanced Monitoring: Includes voltage transformer monitoring, synchronization checks, and comprehensive event logging.
• User Interface: Equipped with an intuitive front-panel display and buttons for easy configuration and operation.
• Communication Options: Supports Ethernet, USB, RS-485, and CAN interfaces for seamless integration with other systems.

3. Application Scenarios

The ABB UNITROL 1020 is widely used in various industrial and power generation environments, including:

• Power Plants: For excitation control in generators within power stations and substations.
• Marine Power Propulsion: Used in ship power propulsion systems and auxiliary power units.
• Diesel and Gas Land-Based Generators: Ideal for remote or off-grid power generation applications.
• Industrial Machinery: Applied in machinery such as port cranes, mining trucks, and other heavy equipment.
• Chemical and Petrochemical Industries: Used in processes requiring precise voltage regulation and control.
• Water Treatment Plants: For motor control in water treatment facilities.
• Metal Processing and Automotive Manufacturing: Provides reliable voltage regulation for motor control in these industries.

4. Supported Industrial Protocols

The UNITROL 1020 supports multiple industrial communication protocols, including:

• Ethernet: For high-speed data transmission and integration with modern control systems.
• USB: Facilitates easy data transfer and device configuration.
• RS-485: Supports serial communication for compatibility with a wide range of industrial devices.
• CAN: Offers robust communication in real-time control applications.

5. Scalability

The ABB UNITROL 1020 is designed with scalability in mind, featuring:

• Modular Design: Allows for easy maintenance and upgrades, enhancing system availability and reliability.
• Flexible Configuration: Supports various input/output configurations, including digital and analog I/O modules, to adapt to different system requirements.
• Redundancy Options: Provides redundancy in critical components to ensure continuous operation in case of failure.
• Expansion Modules: Can be extended with additional power modules for higher current outputs, such as the 20 ADC external power module.
