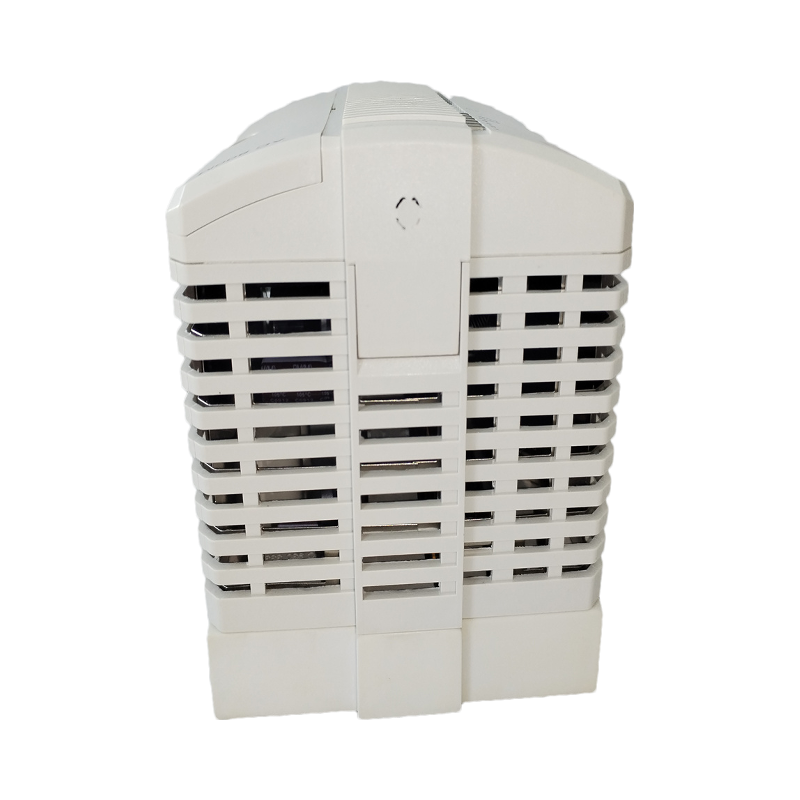

ABB PM866AK01

• Power Supply: Operates on 24V DC (range: 19.2V to 30V DC), with typical power consumption of 210/360 mA at +24V.
• Operating Temperature: -20°C to +60°C.
• Dimensions: 239mm × 80mm × 35mm, with a weight of approximately 0.72 kg.
• Environmental Protection: IP20 rating.

2. Functional Features

• Modular Design: Features a sliding and locking mechanism for easy installation and removal on DIN rails.
• Reliability: High durability with robust fault diagnosis capabilities and EMC certification.
• Real-Time Processing: Capable of executing complex control logic and data processing tasks efficiently.
• Flexible Configuration: Supports CPU redundancy for enhanced system availability, including CPU, CEX-Bus, communication interfaces, and S800 I/O.
• Safety Features: Includes LED indicators, an INIT button, and a built-in backup lithium battery (3.6V).
• Compatibility: Works seamlessly with ABB AC 800M controllers and other ABB products.

3. Application Scenarios

The ABB PM866AK01 is widely used in various industrial automation environments, including:

• Manufacturing: Automation of production lines, welding robot control, and machine tool operations.
• Energy Sector: Monitoring and control of power plants and energy facilities.
• Chemical and Petrochemical Industries: Precise control of complex processes in refineries and petrochemical plants.
• Water Treatment: Intelligent control systems for wastewater treatment plants and water distribution networks.
• Mining and Transportation: Automation solutions for mining operations and transportation systems.

4. Supported Industrial Protocols

The module supports multiple industrial communication protocols, including:

• Ethernet/IP: For high-speed data exchange over Ethernet networks.
• Modbus TCP/IP: A widely used protocol for connecting industrial electronic devices.
• PROFIBUS: Facilitates communication in distributed control systems.
• DeviceNet: Used for connecting devices such as sensors and actuators.

5. Scalability

• Expandability: The modular design allows for easy expansion and reconfiguration to meet evolving industrial needs.
• Integration: Supports seamless integration with existing systems, including ABB’s 800xA control system.
• Future-Proof: The module’s flexible I/O configuration and support for multiple communication protocols ensure adaptability to new technologies and standards.
