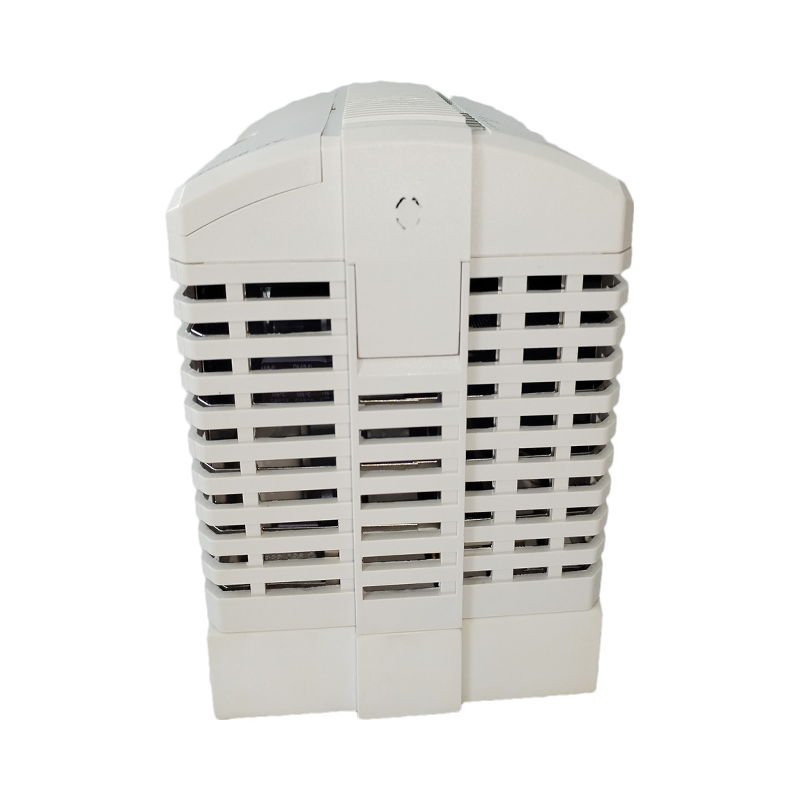

ABB PM866

2. Functional Features

• Redundancy: The PM866 supports full redundancy for CPU, CEX-Bus, communication interfaces, and S800 I/O, ensuring high system availability and minimal downtime in critical applications.
• Programming Flexibility: It supports multiple programming languages, including IEC 61131-3 standards such as ladder diagram, function block diagram, and structured text. It also integrates with ABB’s proprietary Control Builder M and AC 800M environments.
• Real-Time Capabilities: Equipped with a real-time clock and LED indicators for status monitoring, enhancing operational transparency.
• CompactFlash Interface: Provides additional storage and flexibility for system configuration and data backup.
• Safety Features: Includes capabilities for safety monitoring and protection measures, ensuring secure operation in industrial environments.

3. Application Scenarios

The ABB PM866 is widely used in industrial automation applications where high reliability and performance are critical. Key application areas include:

• Power Generation: Used in the control of boiler systems, turbine operations, and auxiliary systems in power plants to ensure stable and safe operation.
• Oil and Gas: Applied in refining and chemical processing plants for automation and control, enhancing safety and efficiency.
• Chemical and Pharmaceutical Industries: Utilized in process control systems to manage complex production processes with precision.
• Metallurgy and Water Treatment: Supports high-reliability control systems for demanding industrial processes.
• Smart Buildings and Energy Management: Integrates into building automation and energy management systems for optimized performance.

4. Supported Industrial Protocols

The PM866 supports a wide range of industrial communication protocols, including:

• Ethernet/IP: For high-speed data exchange in industrial networks.
• Modbus TCP: Enables seamless integration with devices that use Modbus communication.
• Profibus DP: Facilitates communication with field devices in distributed control systems.
• RS-232C: Provides serial communication capabilities for configuration and diagnostics.

5. Scalability

The PM866 is designed for scalability, making it adaptable to varying industrial needs:

• I/O Expansion: Supports up to 96 local I/O modules via ModuleBus, allowing flexible expansion of input/output capabilities.
• Communication Expansion: Through CEX-Bus, it can accommodate up to 12 communication modules, enabling integration with a wide range of industrial networks.
• Redundancy Options: The module’s support for CPU, bus, and I/O redundancy ensures continuous operation even in the event of hardware failures, making it ideal for mission-critical applications.
