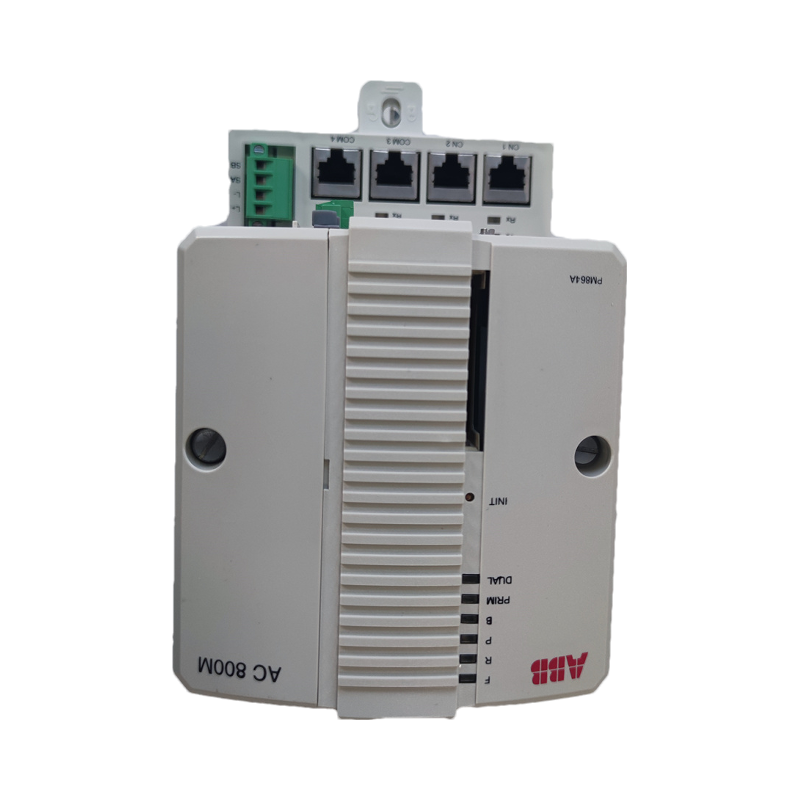

ABB PM864AK01 3BSE018161R1

1. Processor & Performance
   • CPU: High – performance industrial – grade microprocessor (Dual – core ARM Cortex – R4 CPU)
   • Clock Frequency: 96 MHz
   • Boolean Operations: 1,000 operations in 0.15 milliseconds
2. Memory
   • Total Memory: 32 MB RAM
   • Available for Application Code and Data: 23.522 MB RAM
   • Firmware Storage: 2 MB Flash PROM
3. Communication Interfaces
   • Ethernet: 2 x RJ45, 10 Mbit/s
   • Serial: 2 x RS – 232C (one with modem control signals, one isolated for configuration tools)
   • CEX Bus: Supported, for connecting communication and I/O modules
   • ModuleBus: Supported, for connecting S800 I/O modules
4. Others
   • Real – time Clock: Built – in, with an accuracy of about 1 hour/year
   • Power Supply: 24 V DC (19.2 – 30 V DC)
   • Power Consumption: Typical 6.9 W, maximum 11.4 W
   • Operating Temperature: +5 to +55 °C
   • Storage Temperature: – 40 to +70 °C
   • Relative Humidity: 5 to 95%, non – condensing
   • Mounting Method: DIN – rail mounting
   • Dimensions (W x H x D): 196 mm x 119 mm x 135 mm (including base)
   • Weight (including base): Approximately 1.2 kg
   • Kit Includes: PM864A CPU module, TP830 baseplate (width 115 mm), TB850 CEX bus terminal, TB807 ModuleBus terminal, TB852 RCU – Link terminal, Memory backup battery (4943013 – 6), 4 – pin power plug (3BSC840088R4)

Function Features

1. High – performance Processor: The 96 MHz CPU frequency can meet the requirements of various industrial control applications, enabling fast data processing and control operations.
2. Adequate Memory: With 32 MB of RAM, it provides sufficient storage space for application code and data.
3. Flexible Communication Interfaces: Two Ethernet ports and two serial ports facilitate connection to the control network and external devices. The support for multiple communication protocols like PROFIBUS DP, PROFINET IO, Modbus TCP and EtherNet/IP allows for efficient communication and data exchange with various devices.
4. Powerful Expansion Capability: The CEX bus and ModuleBus interfaces support connection to various ABB communication modules and S800 I/O modules, enabling flexible system expansion.
5. High Reliability: The built – in real – time clock and memory backup battery ensure data integrity and time synchronization. It also has multiple fault detection and self – diagnostic functions, such as self – checking of memory and CPU, detection of power supply voltage and communication status.
6. Easy Installation and Maintenance: The DIN – rail mounting method and clear LED indicators simplify installation and troubleshooting. It supports CPU redundant configuration (with additional redundant hardware) to improve system availability and reliability.
7. Industrial – grade Design: The wide operating temperature range and high anti – interference ability enable it to adapt to harsh industrial environments. It supports multiple programming languages under IEC 61131 – 3 standard, like LD (Ladder Diagram), ST (Structured Text), FBD (Function Block Diagram), etc., for flexible programming according to actual needs.

Application Scenarios

1. Process Industry: Such as complex process control in industries like chemical, oil and gas, pharmaceutical, food and beverage.
2. Power Industry: Used in power plant automation and substation automation.
3. Manufacturing Industry: Applied to production line automation control in industries like automotive manufacturing, metal processing, paper – making, cement.
4. Water Treatment Industry: For the automation monitoring and control of water treatment plants.
5. Building Automation: Used for HVAC control, lighting control, etc. in large – scale buildings.
