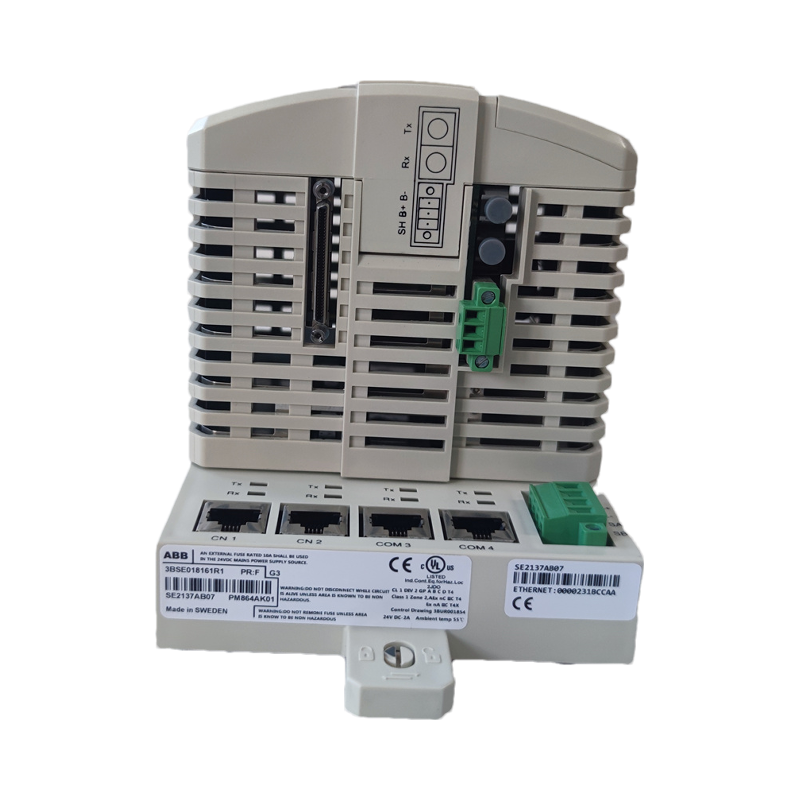

ABB PM864A

Technical Specifications

• Processor & Memory:
  • MPC862 32-bit RISC processor with 96 MHz clock speed for real-time control tasks.
  • 32 MB DRAM and 128 MB NOR flash for program storage and data processing .
• Communication Interfaces:
  • Dual Ethernet ports (RJ45) for redundant control network connectivity.
  • Two RS-232C ports for point-to-point communication with programming tools or third-party systems.
  • Supports Profibus DP and Modbus RTU protocols via optional communication modules .
• Power Supply:
  • 24 V DC ±10% input with reverse polarity protection.
  • Power consumption: <6.9 W under full load .
• Physical Dimensions:
  • 115 mm (width) × 125 mm (height) × 115 mm (depth).
  • Weight: 0.5 kg (aluminum housing with EMI shielding) .
• Environmental Ratings:
  • Operating temperature: -20°C to +60°C (extended industrial range).
  • IP20 protection against solid particles.
  • Compliance with EN 61000-6-2/4 for EMC immunity and emissions .
• I/O Capability:
  • Supports 96 I/O modules via the AC 800M module bus, including analog/digital inputs/outputs and specialized modules for temperature or motion control .

Functional Features

1. Real-Time Control:
   • Executes IEC 61131-3 programming languages (Ladder Logic, Structured Text) with 0.15 ms cycle time for 1,000 boolean operations.
   • Built-in PID/PI control and sequence logic for process optimization .
2. Redundancy & Safety:
   • Supports 1:1 CPU redundancy with <10 ms switchover time for high-availability systems.
   • SIL 2-compliant (IEC 61508) when paired with safety-certified I/O modules .
3. Diagnostics & Monitoring:
   • LED indicators for power, communication, and fault status.
   • Remote diagnostics via ABB Ability™ Condition Monitoring software .
4. Flexible Configuration:
   • Configurable via ABB Control Builder software for custom logic programming.
   • Hot-swap capability for module replacement without system downtime .
5. Memory Management:
   • Lithium battery backup ensures program retention for >235 hours during power outages.
   • Supports CompactFlash cards for firmware updates and data logging .

Application Scenarios

1. Process Automation:
   • Chemical/Petrochemical Plants: Controls distillation units, reactor systems, and quality monitoring.
   • Water/Wastewater Treatment: Manages pump stations, filtration systems, and SCADA integration .
2. Power Generation:
   • Hydroelectric/Wind Turbines: Coordinates generator excitation and grid synchronization.
   • Thermal Power Plants: Optimizes boiler feedwater control and turbine speed regulation .
3. Manufacturing:
   • Food & Beverage: Supervises packaging lines, pasteurization systems, and batch processes.
   • Metallurgy: Controls smelting furnaces, rolling mills, and material handling systems .
4. Building Automation:
   • HVAC Systems: Regulates chilled water plants, air handling units, and energy-efficient lighting.
   • Security Integration: Manages access control and fire detection systems .

Key Benefits

• High Reliability:
  • MTBF >100,000 hours under rated conditions.
  • Wide temperature range ensures operation in extreme environments .
• Scalability:
  • Expands to 32 modules per rack via AC 800M backplane.
  • Future-proof design with field-upgradable firmware .
• Energy Efficiency:
  • Reduces energy consumption by up to 30% through optimized control algorithms.
  • Supports IEC 61800-9-2 compliance for eco-friendly drives .
• Cost Savings:
  • Lower maintenance costs due to self-diagnostic features.
  • Eliminates need for external PLCs in compact control systems .

Compliance & Certifications

• Safety: SIL 2 (IEC 61508), UL 508, and CSA C22.2.
• EMC: EN 61000-6-2 (industrial immunity), EN 61000-6-4 (emissions).
• Environmental: RoHS 2011/65/EU and REACH SVHC compliant .

Typical Use Cases

• Batch Pharmaceutical Production: Manages recipe-driven processes with precise temperature and pressure control.
• Oil & Gas Pipelines: Monitors flow rates, pressure differentials, and leak detection systems.
• Mining Crushers: Optimizes motor speed and torque based on material hardness .

Installation Notes

• Torque Specs: Terminals must be tightened to 8–10 N·m to prevent arcing.
• Battery Replacement: Internal lithium battery requires replacement every 5–7 years.
• Network Configuration: Redundant Ethernet ports should be configured with IEEE 802.3ad link aggregation for high availability .
