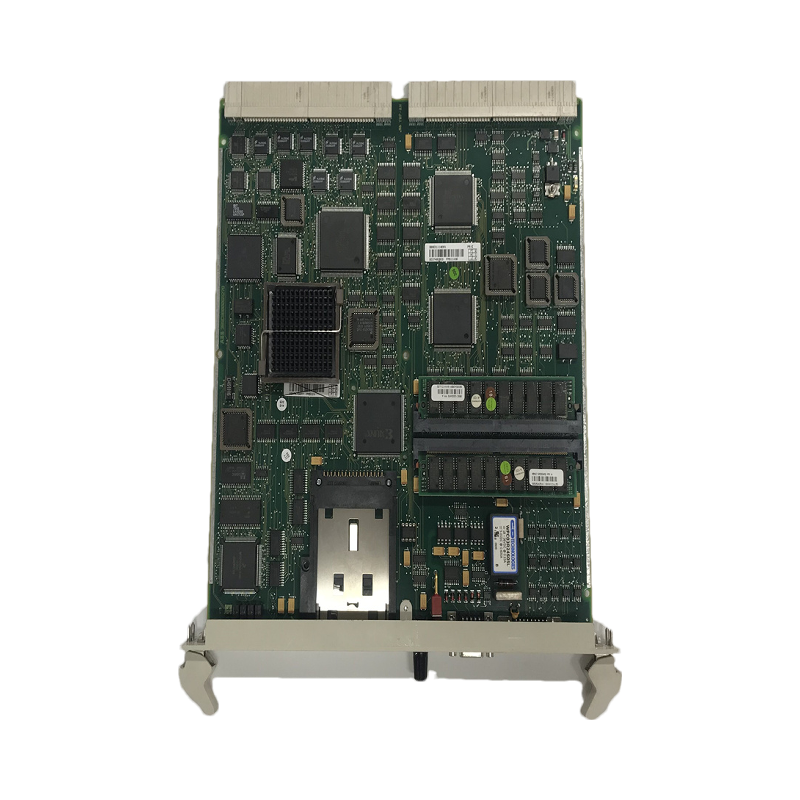

ABB PM511V08 3BSE011180R1

Technical Specifications

• Processor Architecture:
  • 32-bit RISC CPU with 100 MHz clock speed, delivering deterministic real-time performance for industrial control loops.
  • 8 MB DRAM with Error Correction Code (ECC) ensures data integrity in high-vibration environments.
  • PCMCIA slot for expandable storage (flash memory cards up to 256 MB).
• Communication:
  • Profibus-DP V1 interface for seamless integration with PLCs, HMIs, and SCADA systems.
  • 2 RS-422/485 serial ports for legacy device connectivity (e.g., sensors, actuators).
  • Optional EtherCAT or Modbus TCP modules via expansion slots (configurable via DIP switches).
• Power Supply:
  • 24 V DC ±20% input with reverse polarity protection.
  • <3 W power consumption under full load.
• Physical Dimensions:
  • 127 mm (width) × 127 mm (height) × 203 mm (depth).
  • Weight: 0.76 kg (aluminum housing with IP20 protection for indoor use).
• Environmental Ratings:
  • Operating temperature: 0°C to +55°C (industrial grade).
  • Storage temperature: -40°C to +85°C.
  • Compliance with EN 61000-6-2/4 for EMC immunity and emissions.
• Input/Output Integration:
  • Supports hot-swappable I/O modules (e.g., AI, AO, DI, DO) via Advant Master backplane.
  • Real-time data throughput: 10 Mbps for Profibus-DP, 100 Mbps for Ethernet.

Functional Features

1. Programming & Configuration:
   • Supports IEC 61131-3 programming languages (Ladder Logic, Function Block Diagram, Structured Text).
   • ABB Freelance 2019 engineering software for centralized project management.
   • Parameter cloning via USB for rapid deployment across multiple systems.
2. Diagnostics & Safety:
   • LED indicators for power status, communication activity, and fault conditions (e.g., memory error, sensor disconnection).
   • Self-diagnostic firmware with automatic error recovery and alarm logging.
   • SIL 2-compliant (IEC 61508) when paired with safety-certified I/O modules.
3. Expansion Capabilities:
   • Dual PCMCIA slots for firmware updates, data logging, and third-party protocol adapters.
   • Supports multi-CPU redundancy (1:1 or N:1) for fault-tolerant applications.
4. Real-Time Performance:
   • Cycle time: <1 ms for small control loops.
   • Event-driven execution for time-critical processes (e.g., emergency shutdowns).

Application Scenarios

1. Manufacturing Automation:
   • Assembly lines: Coordinates robotic arms and conveyor systems with ±0.1% timing accuracy.
   • Packaging machines: Controls filling, sealing, and labeling processes in food and beverage industries.
2. Energy & Utilities:
   • Power distribution: Monitors grid stability and manages load shedding in substations.
   • Renewable energy: Optimizes solar inverter output and wind turbine synchronization.
3. Process Control:
   • Oil & gas: Supervises wellhead control and pipeline monitoring systems.
   • Water treatment: Regulates pump stations and chemical dosing in wastewater plants.
4. Transportation:
   • Rail systems: Manages signaling, traction control, and passenger information systems.
   • Airport baggage handling: Ensures efficient sorting and routing of luggage.

Key Benefits

• Reliability:
  • MTBF >500,000 hours under rated conditions.
  • Dual-sealed housing and redundant power inputs eliminate single points of failure.
• Energy Efficiency:
  • Low-power design reduces energy consumption by 15% compared to legacy controllers.
  • Supports IEC 61850-90-7 for interoperable energy management.
• Cost Savings:
  • Hot-swap capability reduces maintenance downtime by 50%.
  • Self-diagnostic features minimize unplanned outages.
• Future-Proofing:
  • Backward compatibility with ABB Symphony Plus and 800xA systems.
  • Field-upgradable firmware for protocol updates and new feature integration.

Compliance & Certifications

• Safety: SIL 2 (IEC 61508), UL 61010-1, CSA C22.2.
• EMC: EN 61000-6-2 (industrial immunity), EN 61000-6-4 (emissions).
• Environmental: RoHS 2011/65/EU and REACH SVHC compliant.
• Cybersecurity: ISA Secure certification for industrial-grade protection.

Typical Use Case

• PM511V08 acts as the master controller for a coal-fired boiler.
• Profibus-DP interfaces with distributed I/O modules to monitor steam pressure, temperature, and fuel flow.
• EtherCAT connects to variable-frequency drives (VFDs) for precise control of turbine speed.
• Result: Reduced fuel consumption by 8% and improved steam output stability.
