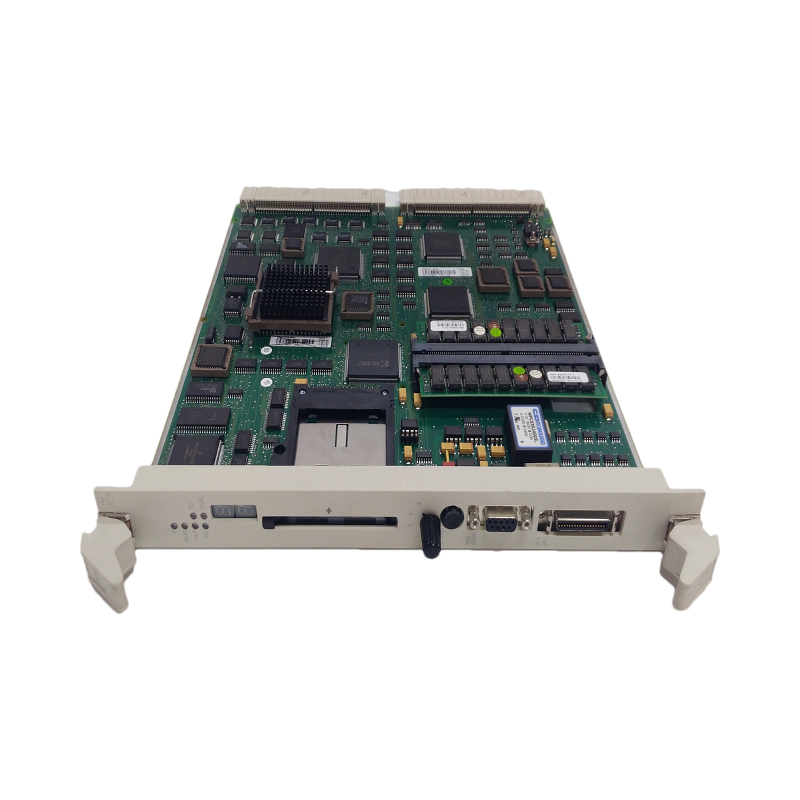

ABB PM511V08

2. Technical Specifications

• As a Processor Module (in Advant OCS): No detailed technical specifications provided for this role.
• As an Analog Output Module (PM511V08 3BSE011180R1 in S800 I/O series):
  • Output Channels: 8 analog – output channels.
  • Output Signals: Supports 0 – 10V or 4 – 20mA voltage/current signals output.
  • Work Voltage: 24V DC.
  • Work Current: 5A.
  • Work Temperature Range: – 25°C to + 55°C.
  • Shell Protection Level: IP67.
  • Size: 120 mm x 80 mm x 60 mm.
  • Weight: Approximately 200 g.
  • Material: ABS plastic.
  • Output Accuracy: ±0.1% of full – scale range.
  • Response Time: Less than 2ms.

3. Functional Features

• As a Processor Module (in Advant OCS):
  • Program Execution: Responsible for executing user – written control programs.
  • Logical Operation: Conducts various logical operations and judgments to achieve control logic.
  • Control Decision – making: Based on programs and input signals, makes control decisions to control device actions.
  • Communication: Communicates with other devices to exchange data and instructions.
• As an Analog Output Module (PM511V08 3BSE011180R1 in S800 I/O series):
  • High – Precision Output: Ensures accurate signal output with an output accuracy of ±0.1% of full – scale range.
  • Fast Response: Meets the speed requirements of industrial applications with a response time less than 2ms.
  • High Reliability: Uses high – quality components to ensure reliable operation.
  • Easy Installation: Adopts standard size and wiring for convenient installation.

4. Application Scenarios

• Industrial Automation:
  • Process Control: In processes such as chemical production, oil refining, etc., it can be used for controlling equipment through analog – output signals or as a core processor in the control system for decision – making and logic operations.
  • Production Line Automation: In manufacturing production lines, it can control the operation of various devices, whether through analog – output signals to adjust equipment parameters or as a processor for overall control.
• Building Automation (Building Control): Can be used in building management systems to control equipment such as air – conditioning systems, lighting systems, etc., through analog – output signals.
