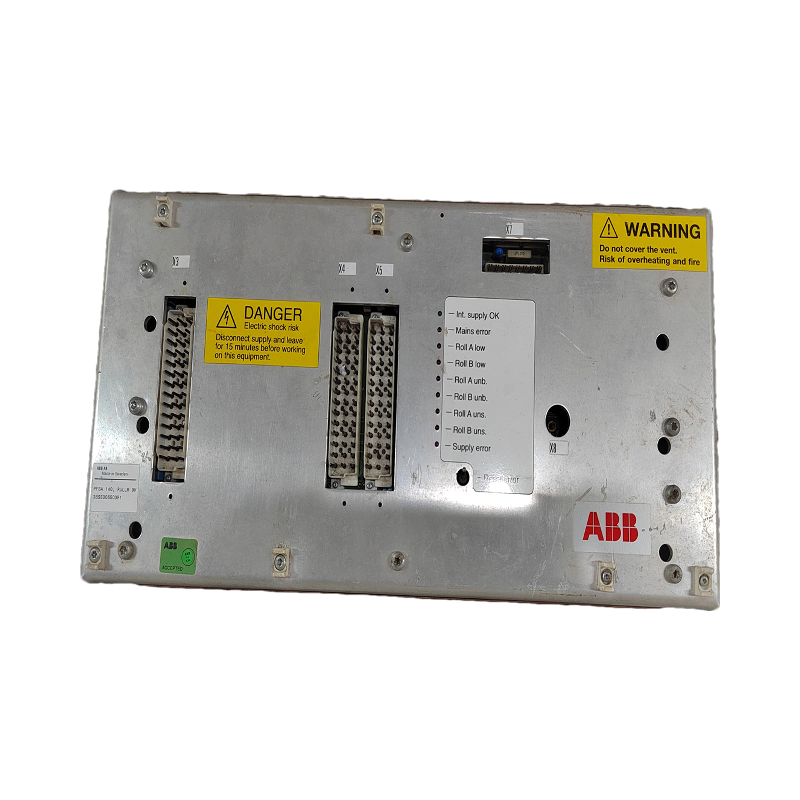

ABB PFSA140

• Signal Types Supported:
  • Input: 4–20 mA current signals, 0–10 V voltage signals.
  • Output: Configurable for analog control signals (e.g., 4–20 mA, 0–10 V).
• Precision & Stability:
  • High-resolution analog-to-digital (ADC) and digital-to-analog (DAC) converters ensure minimal signal distortion.
  • Robust circuit design with electromagnetic shielding to resist industrial noise.
• Power Supply:
  • Operates on standard industrial voltage ranges (specific values may vary based on system configuration).
• Environmental Adaptability:
  • Designed for harsh industrial environments with protection against dust, moisture, and vibrations.
• Mechanical Design:
  • Modular form factor for easy integration into control cabinets.
  • LED indicators for real-time status monitoring (e.g., power, communication, faults).

2. Key Features

• High Precision:
  • Advanced ADC/DAC technology ensures accurate signal conversion, critical for processes requiring tight control (e.g., chemical reactions, power generation).
• Flexible Configuration:
  • Supports multiple analog signal types, allowing customization for diverse sensor/actuator requirements.
• Strong Anti-Interference Capability:
  • Optimized circuit layout and shielding minimize electromagnetic interference (EMI) in noisy industrial settings.
• Hot-Swappable Design:
  • Modules can be replaced during operation without system shutdown, reducing downtime.
• Self-Diagnostics:
  • Built-in fault detection and alarm systems simplify troubleshooting and maintenance.
• Safety Mechanisms:
  • Overload and short-circuit protection safeguard connected equipment.

3. Functional Applications

• Process Control:
  • Monitors and regulates variables like temperature, pressure, and flow in chemical plants, refineries, and power stations.
• Manufacturing Automation:
  • Controls motor speeds, valve positions, and robotic movements in automotive, textile, and packaging industries.
• Energy Management:
  • Optimizes fuel usage in boilers and turbines by maintaining precise combustion parameters.
• Environmental Monitoring:
  • Tracks air/water quality in emissions control systems.
• Material Handling:
  • Manages tension in roll-to-roll processes (e.g., paper, film, metal coil production).

4. Industry Applications

• Power Generation: Thermal power plants, hydroelectric facilities, and renewable energy sites.
• Oil & Gas: Upstream and downstream operations, including pipeline monitoring and refinery control.
• Chemical & Petrochemical: Ensures safe handling of reactive substances in reactors and distillation columns.
• Metals & Mining: Optimizes blast furnace combustion and smelter operations.
• Water & Wastewater: Monitors treatment processes for compliance with environmental standards.
• Food & Beverage: Maintains product quality by controlling fermentation and packaging parameters.

5. Supported Industrial Protocols

• Modbus TCP/IP: Enables integration with SCADA systems and HMI interfaces for data acquisition and supervision.
• PROFIBUS DP: Facilitates real-time communication with PLCs and other automation devices in distributed control systems.
• PROFINET: Supports high-speed industrial Ethernet for deterministic data exchange in modern networks.
• Analog Communication: Direct support for 4–20 mA and 0–10 V signals for compatibility with legacy equipment.

6. Extensibility & Scalability

• Modular Architecture:
  • The PFSA140 can be combined with other I/O modules (e.g., digital input/output, temperature sensors) to expand system capabilities.
• Rack-Mountable Design:
  • Fits into standard 19-inch racks (e.g., in ABB’s Freelance DCS) for space-efficient installations.
• Software Integration:
  • Compatible with ABB’s 800xA DCS and ABB Ability™ digital platforms for advanced analytics and remote monitoring.
• Firmware Upgrades:
  • Supports over-the-air updates to add new features or improve performance.
• Redundancy Support:
  • Can be paired with a secondary PFSA140 module for fault-tolerant operation in critical applications.

7. Advantages

• High Reliability: Built for continuous operation in demanding industrial environments.
• Cost-Effective: Reduces maintenance costs through self-diagnostics and hot-swapping.
• Global Support: Backed by ABB’s worldwide service network and expertise.
• Future-Ready: Designed to integrate with Industry 4.0 technologies like IoT and edge computing.
