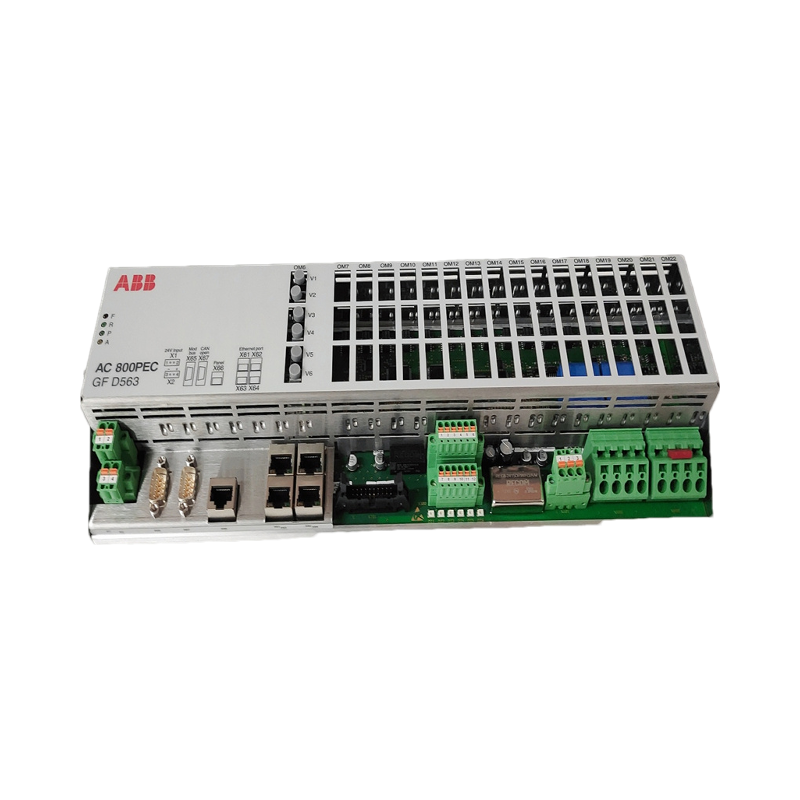

ABB GFD563A101

• Electrical Parameters:
  • Input/Output (I/O) Configuration: Supports digital and analog signal processing. Specific channel counts depend on configuration (e.g., 101 suffix may indicate I/O type or version).
  • Operating Voltage: Typically 24 V DC, compatible with industrial power standards.
  • Environmental Tolerance:
    • Operating Temperature: -25°C to +60°C (suitable for harsh industrial environments).
    • Protection Class: IP20 (standard industrial enclosure).
• Communication Protocols:
  • Industrial Networks: Compatible with Profibus DP, Modbus RTU/TCP, and other fieldbus protocols.
  • Connectivity: Supports Ethernet/IP and PROFINET for seamless integration into distributed control systems (DCS).
• Certifications:
  • Complies with CE, UL, and IEC standards for safety and electromagnetic compatibility (EMC).

2. Key Features

• High-Precision Control:
  • Utilizes advanced microprocessor technology for accurate regulation of industrial processes.
  • Supports PID control, state monitoring, and feedback loops to maintain stable operation.
• Robust Design:
  • Built with durable materials to withstand vibration, temperature fluctuations, and electrical noise.
  • Suitable for continuous operation in demanding environments (e.g., mining, oil and gas).
• Flexible Integration:
  • Works with ABB’s AC 800M series controllers (e.g., PM851, PM861) and other automation devices.
  • Modular architecture allows easy expansion with additional I/O modules (e.g., GFD563A102).
• User-Friendly Configuration:
  • Software tools like Control Builder or Automation Builder simplify programming and debugging.
  • LED indicators (e.g., RUN/ERR) provide real-time status feedback.
• Self-Diagnostic Capabilities:
  • Detects faults (e.g., overvoltage, signal anomalies) and triggers alerts for proactive maintenance.

3. Functional Applications

• Process Control:
  • Regulates variables such as temperature, pressure, and flow in chemical plants, refineries, and water treatment facilities.
  • Enables precise control of valves, pumps, and motors in HVAC systems.
• Motor Control:
  • Manages speed and torque of induction motors in conveyor belts, fans, and compressors.
  • Supports soft-start and variable-speed drive (VSD) applications for energy efficiency.
• Power Generation:
  • Used in励磁 (excitation) systems to stabilize generator output voltage and reactive power.
  • Integrates with turbine controls in hydroelectric and thermal power plants.
• Industrial Automation:
  • Controls robotic arms and CNC machines in manufacturing lines.
  • Facilitates synchronization of multi-axis systems in automotive assembly plants.

4. Industry Applications

• Energy Sector:
  • Optimizes grid stability in renewable energy installations (e.g., wind farms, solar plants).
  • Manages load distribution in smart grids and microgrids.
• Oil and Gas:
  • Monitors pipeline pressure and flow rates in upstream and downstream operations.
  • Controls drilling equipment and pump stations.
• Mining and Metals:
  • Regulates conveyor systems and crushing mills in open-pit and underground mines.
  • Enhances safety in explosive environments (ATEX-certified variants available).
• Water and Wastewater:
  • Automates chemical dosing and aeration processes in treatment plants.
  • Monitors water quality parameters (e.g., pH, turbidity) in real time.
• Food and Beverage:
  • Controls mixing and filling processes in dairy and brewing industries.
  • Ensures hygienic operation in sterile environments.

5. Software and Tools

• Engineering Software:
  • Control Builder: For configuring logic and motion control tasks.
  • Automation Builder: Streamlines system design and commissioning.
  • MATLAB/Simulink: Supports model-based development for complex algorithms.
• Diagnostics and Maintenance:
  • ABB Asset Vista: Provides remote monitoring and predictive maintenance insights.
  • ABB Ability™ System 800xA: Integrates GFD563A101 into a unified control platform.

6. Advantages

• High Reliability: Reduces downtime through fault-tolerant design and rapid diagnostics.
• Scalability: Adapts to evolving automation needs via modular I/O expansion.
• Energy Efficiency: Minimizes power consumption in motor-driven applications.
• Global Support: Backed by ABB’s worldwide service network and documentation.
