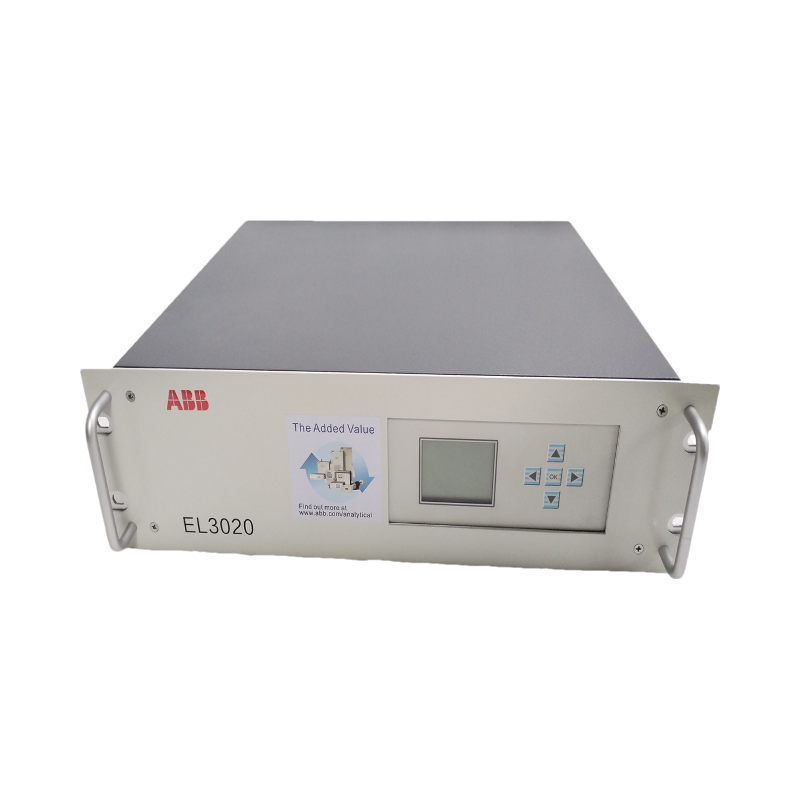

ABB EL3020

• Detector Configuration:
  • Dual-layer detector and optical coupler for enhanced selectivity and low detection limits.
  • Gas-filled radiation detector tailored to the target gas for maximum sensitivity.
• Power Supply:
  • Input Voltage: 100–240 V AC (±10%), 48–63 Hz.
  • Power Consumption: ~40 VA (single-channel), ~70 VA (dual-channel).
• Environmental Adaptability:
  • Operating Temperature: -10°C to +50°C (standard), with optional heating for colder environments.
  • Protection Class: IP65 (dust-tight and water-resistant).
• Dimensions & Weight:
  • Single-Channel: ~15 kg.
  • Dual-Channel: ~21 kg.

2. Key Features

• High Precision & Stability:
  • Provides accurate and repeatable measurements with minimal drift.
  • Fast response time (<3 seconds) for real-time monitoring.
• Multi-Gas Analysis:
  • Supports up to five measurement components per analyzer (e.g., CO, NO, SO₂, O₂, CO₂).
• Automatic Calibration:
  • Simplifies maintenance with integrated pump and valve control for self-calibration.
• Modular Design:
  • Allows easy customization with optional components like filters, pumps, and flow sensors.
• User-Friendly Interface:
  • Menu-driven operation with clear text display for intuitive configuration.
• Robust Construction:
  • Corrosion-resistant gas paths and washable sample chambers for long-term reliability.
• Safety Features:
  • Optional Ex(p) explosion-proof certification for use in hazardous areas (Zones 1 and 2).

3. Functional Applications

• Environmental Monitoring:
  • Measures air quality and pollution levels (e.g., NO₂, SO₂) for regulatory compliance.
• Industrial Process Control:
  • Monitors gas emissions in manufacturing plants to optimize combustion efficiency and reduce waste.
• Energy Production:
  • Tracks gas concentrations in power plants (coal, gas, biomass) to ensure safe and efficient operation.
• Life Sciences:
  • Detects gases produced in biological reactions (e.g., CO₂ in fermentation processes).
• Food & Beverage:
  • Ensures product quality by monitoring gas levels during production and packaging.
• Medical Applications:
  • Measures respiratory gases (e.g., O₂, CO₂) in clinical settings.
• Safety Monitoring:
  • Detects toxic gas leaks (e.g., NH₃, SO₂) in workplaces and public areas.

4. Industry Applications

• Power Generation: Thermal power plants, hydroelectric facilities, and renewable energy sites.
• Oil & Gas: Upstream and downstream operations, including refinery gas monitoring.
• Chemical & Petrochemical: Ensures safe handling of reactive gases in reactors and distillation columns.
• Metals & Mining: Optimizes combustion in blast furnaces and smelters.
• Water & Wastewater: Monitors gas emissions during treatment processes.
• Pharmaceuticals: Validates cleanroom environments and sterilization processes.

5. Supported Industrial Protocols

• Modbus TCP/IP: Enables seamless integration with SCADA systems and HMI interfaces.
• PROFIBUS DP-V0/DP-V1: Facilitates real-time communication with PLCs and other automation devices.
• PROFINET: Supports high-speed industrial Ethernet for deterministic data exchange.
• Analog Output: 0/2/4–20 mA for compatibility with traditional control systems.

6. Extensibility & Scalability

• Modular Design:
  • The EL3020 can be expanded with additional measurement modules (e.g., Uras26 for NDIR, Magnos206 for O₂).
• Customizable I/O:
  • Supports digital inputs/outputs (4 DI/4 DO) and analog outputs (2 channels) for flexible system integration.
• Rack-Mountable Option:
  • Available in a 19-inch rack format (3 HU, IP20) for space-efficient installation in control rooms.
• Software Integration:
  • Compatible with ABB’s 800xA DCS and ABB Ability™ digital solutions for advanced analytics and remote monitoring.

7. Advantages

• High Sensitivity: Detects low concentrations of gases with minimal interference.
• Low Maintenance: Self-cleaning sample chambers and automatic calibration reduce downtime.
• Global Support: Backed by ABB’s worldwide service network and expertise.
