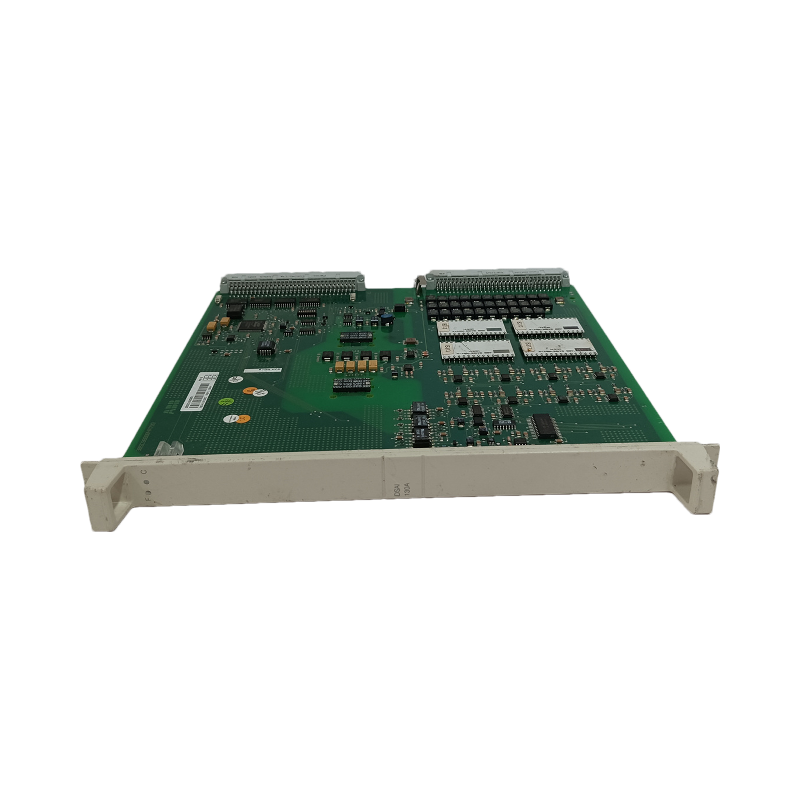

ABB DSAI130A

Technical Specifications

• Input Configuration:
  • 16 differential channels supporting ±10 V DC and ±20 mA signals with 0.025% accuracy .
  • 12-bit resolution and 1 kHz sampling rate for high-precision data acquisition .
  • 50 V DC common-mode voltage (CMV) tolerance with >100 dB common-mode rejection ratio (CMRR) at 50 Hz .
• Power Supply:
  • 24 V DC ±20% input with reverse polarity protection.
  • 1.2 W typical power consumption (1.8 W max under full load) .
• Communication:
  • AC 800M module bus for real-time data exchange with controllers.
  • Optional HART multiplexer support for digital communication with smart field devices .
• Physical Dimensions:
  • 327.6 mm (depth) × 14.4 mm (height) × 236.7 mm (width).
  • Weight: 0.52 kg (aluminum housing with EMI shielding) .
• Environmental Ratings:
  • Operating temperature: -20°C to +60°C (extended industrial range).
  • IP20 protection against solid particles.
  • Compliance with EN 61000-6-2/4 for EMC immunity and emissions .
• Signal Isolation:
  • 500 V DC isolation between I/O channels and the module bus.
  • Overvoltage protection via TVS diodes on input lines .

Functional Features

1. High-Precision Signal Conditioning:
   • Configurable input ranges for voltage/current signals.
   • Built-in analog-to-digital conversion (ADC) with auto-zero and auto-calibration .
2. Real-Time Control:
   • Supports IEC 61131-3 programming languages (Ladder Logic, Structured Text) with 0.1 ms cycle time for critical applications .
   • Direct integration with ABB’s Control Builder software for parameter configuration and diagnostics .
3. Diagnostics & Redundancy:
   • LED indicators for power, communication, and channel-level faults.
   • Hot-swap capability for module replacement without system downtime.
   • Optional 1:1 redundancy with <10 ms switchover time for mission-critical systems .
4. Safety Compliance:
   • SIL 2-compliant (IEC 61508) when paired with safety-certified I/O modules.
   • UL 61010-1/2-201 and CSA C22.2 certifications for industrial safety .
5. HART Protocol Support:
   • Enables bidirectional communication with HART-enabled sensors/transmitters for advanced diagnostics and remote configuration .

Application Scenarios

1. Process Automation:
   • Chemical/Petrochemical Plants: Monitoring pressure, flow, and temperature in reactor systems.
   • Water/Wastewater Treatment: Supervising pH levels, conductivity, and pump performance .
2. Power Generation:
   • Hydro/Wind Turbines: Measuring turbine speed, blade pitch, and lubricant pressure.
   • Thermal Power Plants: Controlling boiler feedwater systems and steam turbine efficiency .
3. Manufacturing:
   • Food & Beverage: Managing pasteurization temperatures and filling machine accuracy.
   • Metallurgy: Optimizing furnace temperature profiles and material stress analysis .
4. Infrastructure Management:
   • Smart Grids: Monitoring grid voltage/frequency and integrating distributed energy resources (DERs).
   • Traffic Control: Analyzing vehicle detection sensor data for adaptive signal timing .

Key Benefits

• Reliability:
  • MTBF >200,000 hours under rated conditions.
  • Dual-core architecture with hardware-based error correction .
• Scalability:
  • Expands to 32 modules per rack via AC 800M backplane.
  • Field-upgradable firmware for future-proofing .
• Energy Efficiency:
  • Reduces power consumption by 25% through optimized signal conditioning.
  • Supports IEC 61850 for smart grid interoperability .
• Cost Savings:
  • Self-diagnostic features minimize maintenance costs.
  • Hot-swap capability reduces downtime during module replacement .

Compliance & Certifications

• Safety: SIL 2 (IEC 61508), UL 61010-1/2-201, CSA C22.2.
• EMC: EN 61000-6-2 (industrial immunity), EN 61000-6-4 (emissions).
• Environmental: RoHS 2011/65/EU and REACH SVHC compliant.
• Cybersecurity: ISA Secure certification for industrial-grade protection .

Typical Use Case

• DSAI130A monitors 16 differential pressure/temperature signals from reactors and sterilization chambers.
• Configurable input ranges accommodate 4-20 mA signals from pressure transmitters and ±10 V signals from RTD sensors.
• HART protocol enables remote calibration of smart sensors, reducing manual intervention by 40%.
• Result: Precise recipe execution with ±0.1% accuracy and 99.9% uptime during 24/7 production cycles .
