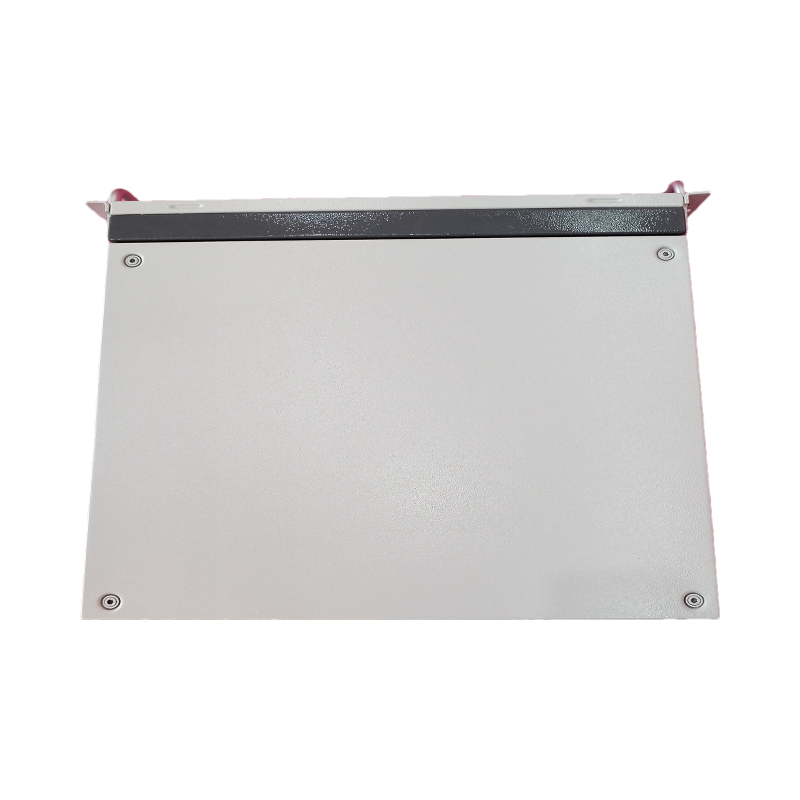

ABB AO2020

• Communication Interfaces:
  • Ethernet: Supports TCP/IP for network integration.
  • Serial Ports: RS-232, RS-485 for local debugging and engineering PC connectivity.
  • Analog Output: 0/2/4–20 mA (maximum load 750 Ω).
• Power Supply:
  • Input Voltage: 100–240 V AC (±10%), 48–63 Hz.
  • Power Consumption: Single-channel: ~40 VA; Dual-channel: ~70 VA.
• Environmental Adaptability:
  • Operating Temperature: -10°C to +45°C.
  • Vibration Resistance: Acceleration amplitude ≤0.01 m/s² (frequency range: 0.1–200 Hz).
• Dimensions & Weight:
  • Single-Channel: ~15 kg.
  • Dual-Channel: ~21 kg.

2. Key Features

• High Precision & Reliability:
  • Utilizes advanced infrared spectroscopy and electrochemical sensors for accurate gas analysis.
  • Designed for harsh industrial environments with robust construction.
• Multi-Gas Analysis:
  • Simultaneously measures multiple gas components (e.g., CO, CO₂, NO, SO₂, NH₃, O₂).
• Automatic Calibration & Cleaning:
  • Reduces maintenance workload and ensures consistent performance.
• User-Friendly Interface:
  • Intuitive menu-driven operation with a graphical display for easy configuration.
• Flexible Configuration:
  • Supports customizable measurement ranges and automatic range switching.
• Remote Monitoring & Diagnostics:
  • Enables remote management and troubleshooting via Ethernet.
• Modular Design:
  • Allows for easy expansion or integration with other systems.

3. Functional Applications

• Process Control:
  • Monitors gas concentrations in chemical plants, refineries, and steel mills.
  • Optimizes combustion efficiency in power plants (coal, gas, biomass).
• Environmental Monitoring:
  • Measures emissions from industrial facilities to ensure compliance with regulations.
  • Monitors air quality in urban areas.
• Safety Systems:
  • Detects hazardous gases in confined spaces (e.g., tunnels, mines).
  • Provides early warning for gas leaks in industrial settings.
• Energy Management:
  • Optimizes fuel usage in boilers and furnaces.
  • Monitors gas quality in natural gas pipelines.

4. Industry Applications

• Power Generation:
  • Used in thermal power plants, hydroelectric plants, and renewable energy facilities.
• Oil & Gas:
  • Monitors gas composition in upstream and downstream operations.
• Chemical & Petrochemical:
  • Ensures safe operation in reactors and distillation columns.
• Metals & Mining:
  • Optimizes combustion in blast furnaces and smelters.
• Water & Wastewater:
  • Monitors gas emissions during treatment processes.
• Food & Beverage:
  • Controls gas concentrations in fermentation and packaging processes.

5. Supported Industrial Protocols

• Ethernet/IP: For seamless integration with modern industrial networks.
• PROFINET: Enables real-time communication with PLCs and other automation devices.
• Modbus TCP/IP: Facilitates data exchange with SCADA systems and HMI interfaces.
• OPC UA: Provides secure and interoperable communication with third-party systems.

6. Extensibility & Scalability

• Modular Design:
  • The AO2020 can be integrated into larger systems using additional modules (e.g., S800 I/O modules).
• Software Upgrades:
  • Supports firmware updates to add new features or improve performance.
• Customizable Configuration:
  • Users can configure measurement ranges, alarm thresholds, and communication settings.
• Seamless Integration:
  • Compatible with ABB’s 800xA DCS and other industrial automation platforms.

7. Advantages

• High Accuracy: Advanced sensors ensure reliable gas analysis.
• Robust Design: Built for harsh industrial environments.
• Easy Maintenance: Automatic calibration and cleaning reduce downtime.
• Global Support: Backed by ABB’s worldwide service network.
