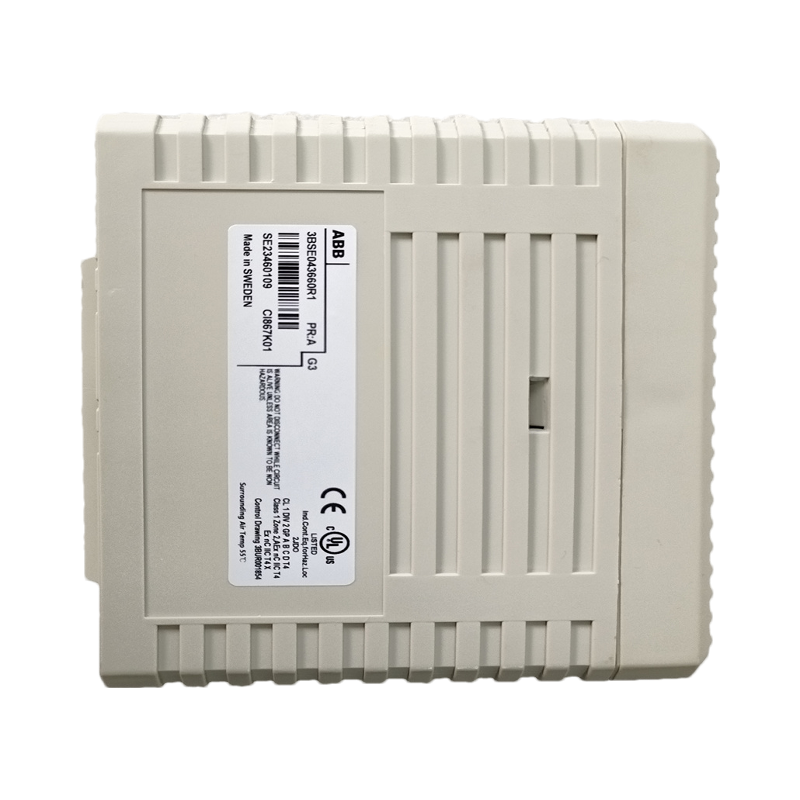

ABB 3BSE043660R1

Technical Specifications

• Communication Protocol:
  • Supports Modbus TCP for Ethernet-based communication, enabling real-time data exchange with third-party devices and systems .
  • Two Ethernet ports:
    • Channel 1: 10/100 Mbps full-duplex (RJ45) for high-speed connectivity.
    • Channel 2: 10 Mbps half-duplex (RJ45) for legacy or low-bandwidth applications .
• Power Supply:
  • 24 V DC input with reverse polarity protection, ensuring stable operation in industrial environments .
  • Power consumption: 160 mA typical under full load .
• Physical Dimensions:
  • 127.5 mm (depth) × 186 mm (height) × 59 mm (width).
  • Weight: 0.7 kg (including baseplate) .
• Environmental Ratings:
  • Operating temperature: 0°C to +55°C (standard range) .
  • IP20 protection against solid particles (non-enclosed use) .
  • Compliance with RoHS and WEEE Category 5 standards .
• Connectivity:
  • CEX-bus interface for modular expansion with ABB S800 I/O modules.
  • DIN rail mounting via TP867 baseplate (included in the kit) .

Functional Features

1. Redundancy & Reliability:
   • Supports hot-swap capability for maintenance without system downtime.
   • Dual-channel architecture ensures fail-safe communication in critical applications .
2. Flexible Configuration:
   • Configurable via ABB’s 800xA Control Builder software, allowing seamless integration with existing control logic.
   • Supports both master and slave modes, with a maximum of 70 slave devices and 8 master devices per module .
3. Diagnostics:
   • LED indicators for power status, communication activity, and fault detection.
   • Built-in self-diagnostic functions for quick troubleshooting .
4. Security:
   • Compliant with IEC 61131-3 standards for industrial communication security.
   • Encrypted data transmission via Modbus TCP for secure remote access .

Application Scenarios

1. Process Control:
   • Chemical & Petrochemical: Integrates with reactors, distillation units, and pipelines for real-time monitoring and control.
   • Water/Wastewater Treatment: Manages pumps, valves, and filtration systems via Modbus TCP .
2. Power Systems:
   • Power Generation: Connects turbines, generators, and substations to centralized SCADA systems.
   • Renewable Energy: Enables grid integration of solar/wind farms through Modbus TCP-based inverters and sensors .
3. Manufacturing Automation:
   • Discrete Manufacturing: Controls robotics, conveyors, and assembly lines in automotive and electronics production.
   • Packaging: Coordinates filling, sealing, and labeling machines for precision timing .
4. Oil & Gas:
   • Upstream/Downstream: Supervises drilling rigs, refineries, and pipelines with redundant communication for hazardous environments .
5. Building Automation:
   • Integrates HVAC systems, lighting, and security systems in smart buildings via Modbus TCP .

Key Benefits

• Interoperability:
  • Seamless integration with non-ABB devices (e.g., PLCs, HMIs, and sensors) using the Modbus TCP protocol .
• Scalability:
  • Supports up to 12 modules per CEX-bus segment, allowing large-scale system expansion .
• Ease of Use:
  • Pre-configured templates in ABB’s 800xA software reduce engineering time.
  • Plug-and-play design with minimal wiring requirements .
• Cost Efficiency:
  • Eliminates the need for protocol gateways by directly embedding Modbus TCP functionality .

Package Contents

• CI867 communication module.
• TP867 baseplate (60 mm width) for DIN rail mounting.
• CEX-bus terminator and power connector .

Compliance & Certifications

• EMC Compliance: Meets industrial electromagnetic compatibility standards (e.g., EN 61000-6-2/4).
• Safety: Compatible with ABB’s SIL 3-rated systems when paired with safety-certified I/O modules.
• Environmental: RoHS-compliant and designed for long-term operation in harsh industrial conditions .

Typical Use Cases

• Remote Monitoring: Enables cloud-based diagnostics and predictive maintenance via Modbus TCP.
• Batch Processing: Orchestrates recipe-driven production in pharmaceuticals and food industries.
• Turbine Control: Replaces legacy systems in power plants to enhance efficiency and reduce maintenance costs .
