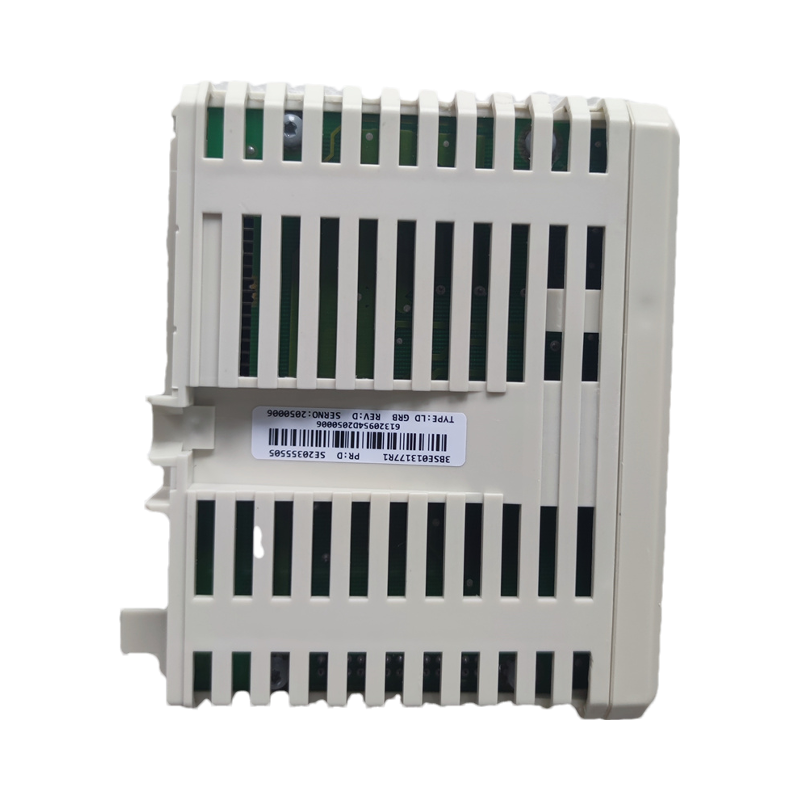

ABB 3BSE013177R1

2. Function Features

• Digital Signal Acquisition: Mainly functions to collect digital signals, which are typically the status information of devices like switches, buttons, and sensors, represented as logic 0 and logic 1.
• Multi – channel Support: Supports multiple digital input channels, enabling the simultaneous monitoring of numerous input devices or signal sources. Each channel can be used to connect different digital sensors or switches.
• Digital Signal Processing: Capable of processing digital signals, including detecting signal status changes, recording events, and counting, making it suitable for diverse monitoring and control applications.
• High – speed Sampling: Equipped with a high – speed sampling function, useful for monitoring rapidly changing digital signals such as pulse signals or transient events.
• Communication Interfaces: Comes with communication interfaces for data exchange and communication with control systems like PLCs and DCSs. Supported communication interfaces may include Ethernet, Profibus, and Modbus.
• Flexible Configuration: Allows users to configure the input channels according to specific application requirements, offering high flexibility and customizability.
• Alarm and Notification: Can generate alarms and send notifications, enabling operators or maintenance personnel to take timely measures in response to device status changes or abnormal situations.
• High Reliability: Constructed with high – quality electronic components and materials, and having undergone strict quality control and testing, it has a long service life and a low failure rate. It can operate stably in harsh industrial environments, ensuring continuous equipment operation and normal production line operation.
• Multiple Interface Options: For the output module, it supports various interface options such as analog output and digital output, facilitating connection with different types of actuators to achieve various control functions.
• Easy Configuration and Maintenance: Supports multiple configuration and programming methods, which is convenient for users to configure and program. Also, its design takes into account maintenance convenience, reducing user operation difficulty and maintenance costs while improving module usage efficiency and reliability.

3. Application Scenarios

• Industrial Automation: Widely used in industrial automation systems to monitor and control various industrial devices, including production lines, robots, motors, and sensors. It can be applied in processes like process control, factory automation, and building automation, especially in applications with high requirements for data integrity and system safety.
• Automated Production Lines: Helps in monitoring and controlling the operation of automated production lines, ensuring smooth production processes by collecting and processing digital signals from various devices on the line.
• Robotics Control Systems: Used to receive input signals from sensors in robotic systems and send appropriate output signals to control the movement and operation of robots.
• Energy Management: Can be involved in energy – related industrial applications to monitor and control energy – consuming devices, contributing to efficient energy management.

4. Supported Industrial Protocols

• Ethernet, Profibus, Modbus are among the supported industrial protocols for data exchange and communication with other control systems or devices.

5. Expandability

• Channel Configuration: The ability to configure input channels according to specific needs implies a certain degree of expandability in terms of adapting to different monitoring requirements. For example, if new digital sensors need to be added in an application, the module can be re – configured to include these new input sources.
• Output Interface Flexibility: The multiple output interface options (analog and digital) of the output module allow for connection with a wide variety of actuators, which can be seen as a form of expandability in terms of control functions. As the control requirements change and different types of actuators are introduced, the module can be easily connected to these new devices.
• System Integration: Its compatibility with multiple industrial protocols enables seamless integration with different control systems (PLCs, DCSs), which is beneficial for system expansion. As the overall industrial control system grows and new components or subsystems are added, the LDGRB – 01 module can communicate effectively with these new elements through the supported protocols.
