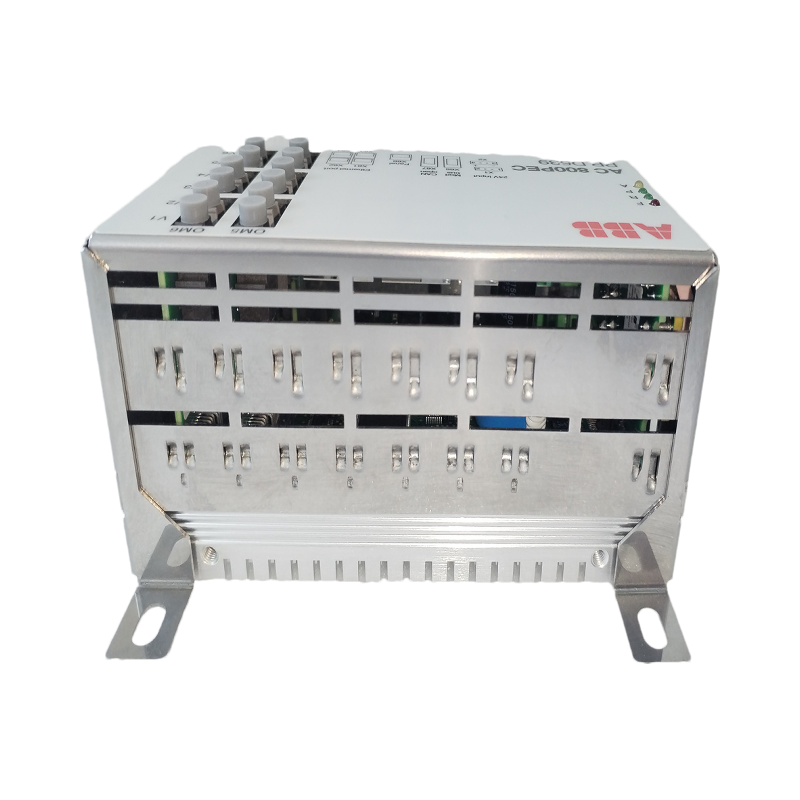

ABB 3BHE039770R0102

• Communication Interfaces:
  • Ethernet: Dual RJ45 ports for redundant network connectivity (supports OPC UA, PROFINET, Ethernet/IP, Modbus TCP).
  • Serial Port: One RJ45 COM port (isolated) for local debugging or HMI connections.
  • Fiber Optic Links: For high-speed communication with fast I/O systems (latency <1 ms).
• I/O Capabilities:
  • Supports fast I/O (for high-speed applications like motion control) and slow I/O (for general-purpose signals).
  • Compatible with ABB’s S800 I/O modules for flexible expansion.
• Dimensions: Compact form factor (approx. 400 mm x 300 mm x 200 mm) for space-efficient installation.
• Environmental Tolerance:
  • Operating Temperature: -25°C to +60°C (suitable for harsh industrial environments).
  • Protection Class: IP20 (standard industrial enclosure).
• Certifications: Complies with IEC 61508 SIL3, CE, and UL standards for safety and electromagnetic compatibility (EMC).

2. Key Features

• High Reliability:
  • Redundant Architecture: Dual-controller configuration (1oo2D system) with active self-checking mechanisms to ensure fault tolerance.
  • Hot-Swappable: Modules can be replaced without system shutdown when paired with a redundant unit.
• High-Speed Performance:
  • Cycle Time: As low as 100 μs for fast control loops.
  • Fast I/O System: Supports read/write operations in <1 ms for critical applications.
• Flexible Configuration:
  • Modular design allows integration with distributed I/O devices or centralized processing units.
  • Supports MATLAB/Simulink for model-based design and easy migration from simulation to implementation.
• Advanced Diagnostics:
  • Built-in hardware watchdog and self-diagnostic tools monitor system health.
  • LED indicators (RUN/ERR/COM) provide real-time status feedback.
• Secure Communication:
  • Hardware-based security features prevent unauthorized access.
  • Supports SNTP/NTP for accurate time synchronization.
• Scalability:
  • Adaptable to small, compact systems or large, modular architectures.

3. Functional Applications

• Process Control:
  • Regulates temperature, pressure, and flow in chemical plants, refineries, and water treatment facilities.
  • Manages safety instrumented systems (SIS) for emergency shutdowns.
• Power Generation:
  • Controls turbine operations in thermal and hydroelectric power plants.
  • Optimizes grid stability in renewable energy installations (e.g., wind farms).
• Motor Control:
  • Drives variable-speed motors in conveyor systems, pumps, and fans for energy-efficient operation.
• Industrial Automation:
  • Coordinates robotic arms and CNC machines in automotive and machinery manufacturing.
• Transportation Systems:
  • Manages traffic signals, railway signaling, and aerospace applications for safety and efficiency.

4. Industry Applications

• Oil & Gas:
  • Monitors pipeline pressure and flow rates in upstream and downstream operations.
• Mining & Metals:
  • Regulates crushing mills and conveyor systems in open-pit and underground mines.
• Water/Wastewater:
  • Automates chemical dosing and aeration processes in treatment plants.
• Food & Beverage:
  • Controls mixing and filling processes in dairy and brewing industries.
• Building Automation:
  • Manages HVAC, lighting, and security systems in smart buildings.

5. Advantages

• Robust Design:
  • Built for industrial environments with high immunity to electromagnetic interference (EMI).
• Easy Integration:
  • Seamlessly connects with ABB’s 800xA DCS and third-party systems via open standards (IEC 61131-3, OPC UA).
• Cost-Effective:
  • Reduces downtime and maintenance costs through remote diagnostics and predictive maintenance.
• Global Support:
  • Backed by ABB’s worldwide service network and comprehensive documentation.
