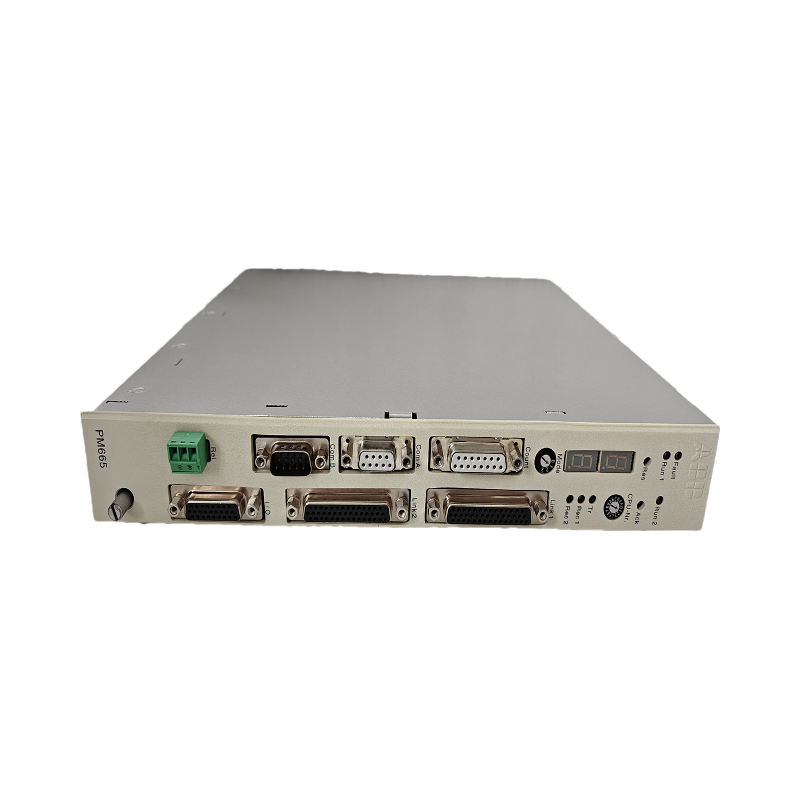

ABB 3BDS005799R1

• Communication Interfaces:
  • Serial Port: RS-232, RS-485 for local debugging and engineering PC connectivity.
  • Ethernet: TCP/IP for network integration.
  • Fieldbus Support: PROFIBUS, AF100 (high-performance fieldbus for railways and industrial networks).
• I/O Capabilities:
  • Supports fast input/output (via fiber optic links) for high-speed control loops (<1 ms latency).
  • Compatible with S800 I/O modules for distributed or centralized configurations.
• Mechanical Design:
  • Dimensions: Approx. 120 mm × 100 mm × 50 mm.
  • Weight: Around 1.7 kg.
  • Protection Class: IP20 (standard industrial enclosure).
• Certifications: Complies with IEC 61508 SIL3, CE, and UL standards for safety and electromagnetic compatibility (EMC).

2. Key Features

• High Reliability:
  • Redundant Architecture: Dual-controller configuration (1oo2D system) with self-checking mechanisms for fault tolerance.
  • Hot-Swappable: Modules can be replaced without system shutdown when paired with a redundant unit.
• High-Speed Performance:
  • Cycle Time: As low as 46 μs for fast control loops (e.g., motor control, turbine regulation).
  • FPGA Integration: Enables real-time processing of complex tasks (e.g., redundancy voting, high-speed link communication).
• Flexible Configuration:
  • Modular Design: Supports distributed I/O devices or centralized processing units.
  • Scalability: Adaptable to small-scale systems or large modular architectures.
• Advanced Diagnostics:
  • Built-in hardware watchdog and self-diagnostic tools monitor system health.
  • LED indicators (RUN/ERR/COM) provide real-time status feedback.
• Secure Communication:
  • Hardware-based security features prevent unauthorized access.
  • Supports SNTP/NTP for accurate time synchronization.
• Easy Integration:
  • Seamlessly connects with ABB’s 800xA DCS and third-party systems via open standards (IEC 61131-3, OPC UA).

3. Functional Applications

• Process Control:
  • Regulates temperature, pressure, and flow in chemical plants, refineries, and water treatment facilities.
  • Manages safety instrumented systems (SIS) for emergency shutdowns.
• Power Generation:
  • Controls turbine operations in thermal and hydroelectric power plants.
  • Optimizes grid stability in renewable energy installations (e.g., wind farms).
• Motor Control:
  • Drives variable-speed motors in conveyor systems, pumps, and fans for energy-efficient operation.
• Industrial Automation:
  • Coordinates robotic arms and CNC machines in automotive and machinery manufacturing.
• Transportation Systems:
  • Manages traffic signals, railway signaling, and aerospace applications for safety and efficiency.

4. Industry Applications

• Oil & Gas:
  • Monitors pipeline pressure and flow rates in upstream and downstream operations.
• Mining & Metals:
  • Regulates crushing mills and conveyor systems in open-pit and underground mines.
• Water/Wastewater:
  • Automates chemical dosing and aeration processes in treatment plants.
• Food & Beverage:
  • Controls mixing and filling processes in dairy and brewing industries.
• Building Automation:
  • Manages HVAC, lighting, and security systems in smart buildings.

5. Advantages

• Robust Design:
  • Built for harsh industrial environments with high immunity to electromagnetic interference (EMI).
• Cost-Effective:
  • Reduces downtime and maintenance costs through remote diagnostics and predictive maintenance.
• Global Support:
  • Backed by ABB’s worldwide service network and comprehensive documentation.
